Small wind turbines

GW-133 HAWT

A high-efficiency 9.7 kW wind turbine designed for hybrid systems, commercial applications, and off-grid energy in medium to high wind environments.

Core performance specs of the GW-133 HAWT

The GW-133 is built for dependable energy production across commercial, off-grid, and hybrid systems. With a rated output of 9.7 kW and optimised for mid-to-high wind speeds, it delivers consistent power where reliability matters most.

Rotor dimensions

Swept area: 133 m²
Diameter: 13 m
Radius: 6.5 m

Rotor speed

56 RPM

Optimised for steady wind conditions

Weight

900 kg

Built for reliable, long-term performance

Regulation type

Class III Passive

Safely regulates output in strong wind conditions

Two-blade wind turbine on a monopole tower among palm trees by the sea
Rendering of a two-blade wind turbine nacelle showing the generator, gearbox and service platform

Core design characteristics of the GW-133 HAWT

The GW-133’s internal components are optimised for simplicity, resilience, and reduced maintenance — ideal for hybrid systems and off-grid performance.

Blades

Single piece glass fibre blade maximises strength and minimises connection interfaces, limiting points of potential failure.

Swept Area

Superior performance in moderate wind speeds due to the large swept area of 133 m² maximises power output.

Generator

Induction generator produces 3 phase, sinusoidal output without the need for power electronics, simplifying the control system and increasing the reliability of the system.

Anemometer

Wind speed sensor accurately tracks the behaviour of the wind in real time, in order to improve the turbine’s performance and safety.

Work Basket

Built-in work basket and ladder allow servicing and maintenance to be performed easily and safely, at a reduced cost, without the need for specialist lifting equipment.

Gearbox

Fixed ratio gearbox with a constant rotor speed ensures a low-level noise profile is maintained even during high wind speeds.

Controller & Monitoring

Remote monitoring allows service engineers to assess the status and health of the wind turbine, ensuring the system is operating at peak performance at all times.

Data sheet

Everything you need to know about the performance and build of this model in one place

TECHNICAL DETAILS

Generator

Type

Permanent Magnet

Maximum Power

10.2 kW

Rated Power

9.6 kW

Rotor

Configuration

Horizontal Axis

No. of Blades

2

Blade Material

Glass fibre

Blade Length

6.5 m

Rotor Diameter

13 m

Swept Area

133 m²

Nominal Rotor Speed

56 rpm

Pitch/Yaw

Downwind active pitch with assisted yaw

Wind

Cut-In Speed

3 m/s

Rated Wind Speed

11 m/s

Cut-Out Speed

25 m/s

Survival Speed

52.5 m/s

Weights

Nacelle/Rotor

900 kg

Towers

Tilt-Up Monopole

18 – 27 m

Lattice

15 – 36 m

Design Parameters

Turbine Design Class

IEC 61400-2 Class III

Temperature Range

-20° to 50°C

Lifespan & Servicing

20 years, subject to regular maintenance

Small wind turbine on a lattice tower atop a grassy hill at sunset

Get the full specs and install details

Everything you need to plan, install and integrate this turbine is ready to download

Small wind turbine on a lattice tower atop a grassy hill at sunset

Get the full specs and install details

Everything you need to plan, install and integrate this turbine is ready to download

Real-world uses for this turbine

Built for locations that need reliable power without the grid

Off-grid and hybrid energy systems

Ideal for powering rural homes, research sites, and critical infrastructure in medium to high wind regions.

Off-grid and hybrid energy systems

Ideal for powering rural homes, research sites, and critical infrastructure in medium to high wind regions.

Commercial and industrial facilities

Delivers dependable power for small-scale manufacturing, processing plants, and distributed industrial operations.

Agricultural and irrigation support

Energises irrigation systems, storage units, and operational infrastructure across remote agricultural sites.

Agricultural and irrigation support

Energises irrigation systems, storage units, and operational infrastructure across remote agricultural sites.

Remote service-ready environments

The built-in work basket simplifies servicing, making it a strong fit for remote sites with limited equipment access.

Remote service-ready environments

The built-in work basket simplifies servicing, making it a strong fit for remote sites with limited equipment access.

Performance

Understand your turbine’s output

See how this model performs and what kind of energy it can deliver in real conditions

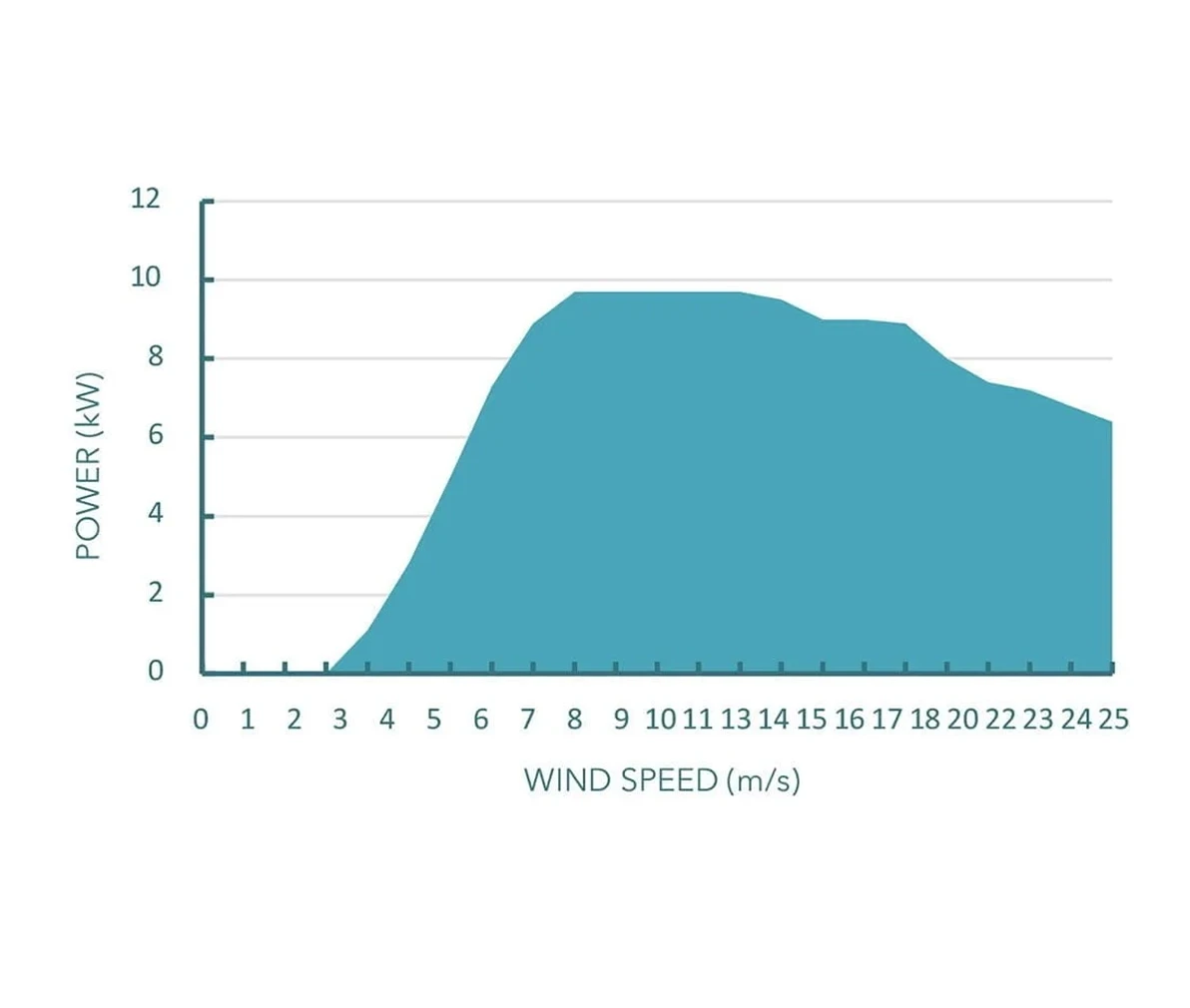

Power curve

Power curve

This chart displays the GW-133’s power output across varying wind speeds, helping users understand how the turbine performs in different environmental conditions.

Power curve

Power curve

This chart displays the GW-133’s power output across varying wind speeds, helping users understand how the turbine performs in different environmental conditions.

Energy Curve

Energy Curve

Visualising the estimated monthly energy yield based on average wind speed is helpful for site planning and feasibility

Energy Curve

Energy Curve

Visualising the estimated monthly energy yield based on average wind speed is helpful for site planning and feasibility

Three-blade wind turbine on a lattice tower beside a row of poplar trees
Sound levels

How quiet is it?

Smart control systems and mechanical design keep the GW-133 operating quietly, making it well-suited for hybrid systems in populated or sensitive areas.

45 dB (A)

As quiet as a typical living room

60 meters

40 dB (A)

Roughly equal to a quiet library at 80m

100 meters

35 dB (A)

Quiet room at night

180 meters

Gallery

See this turbine in action

Explore real-world installations and get a better sense of the scale, structure and design in the field

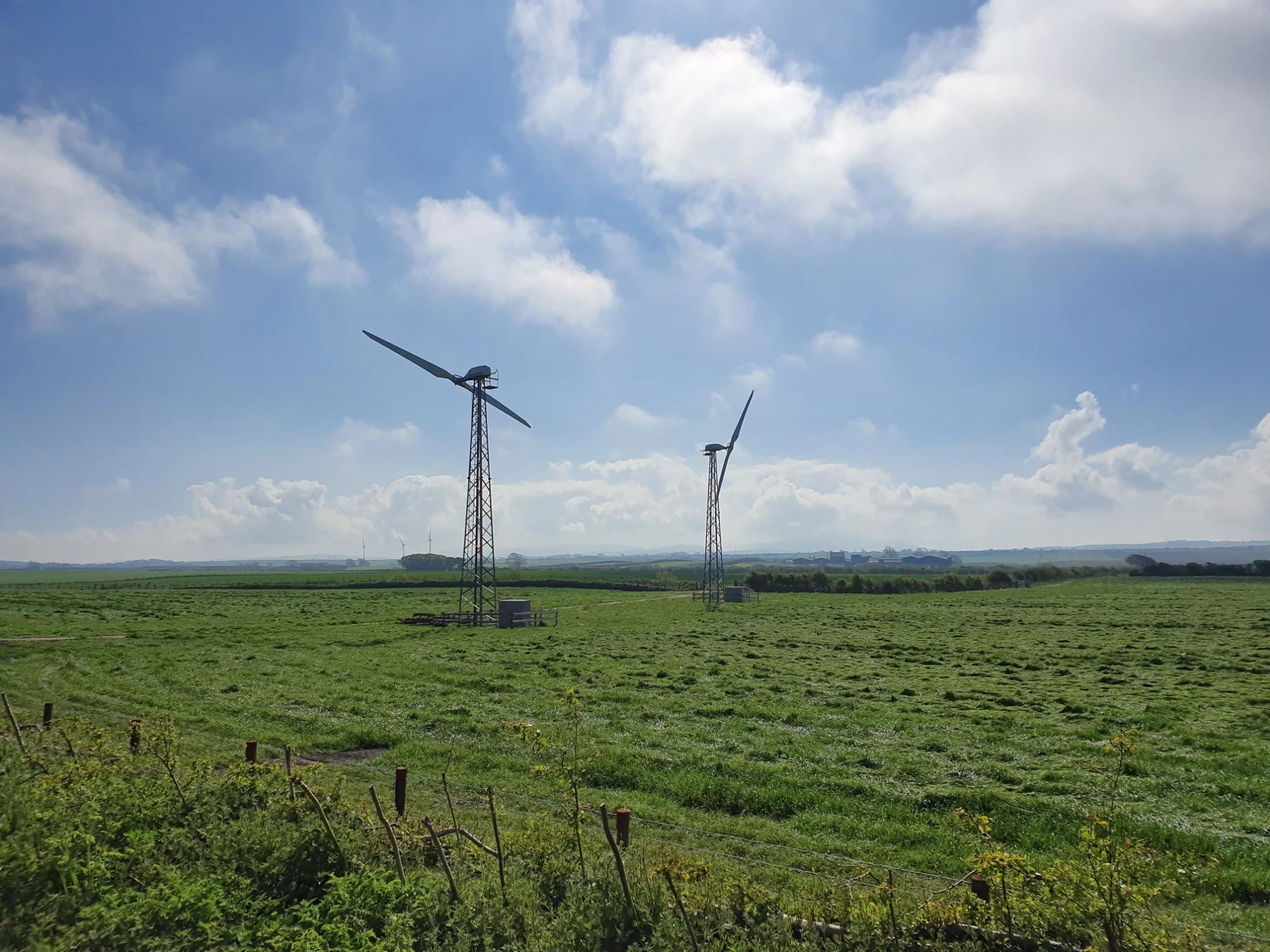

Two two-blade wind turbines on lattice towers in a green field

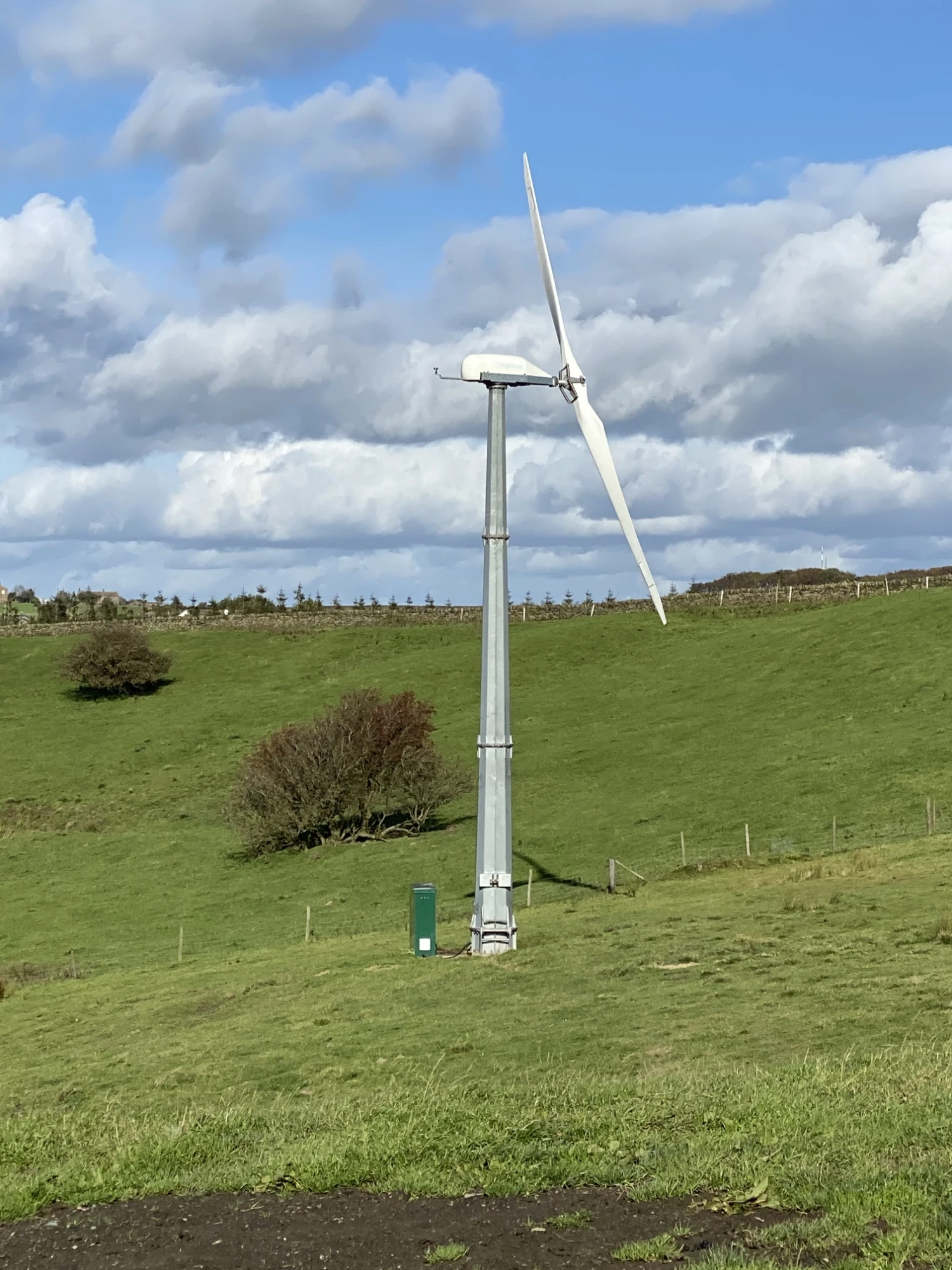

Two-blade wind turbine on a monopole tower on a grassy hillside

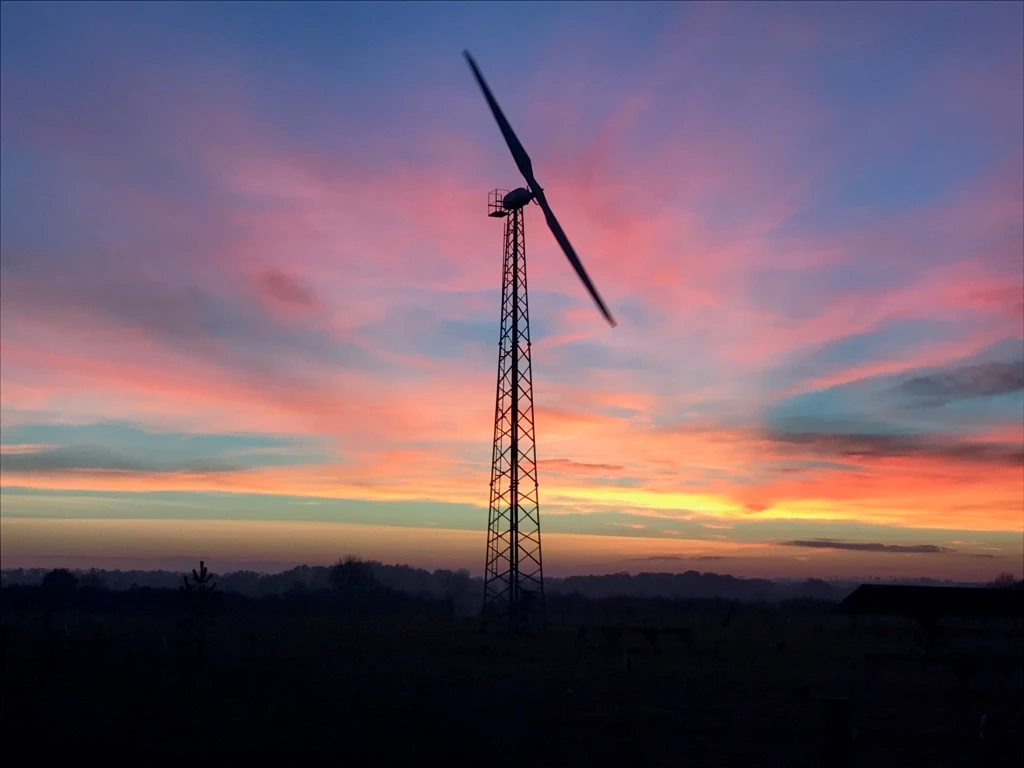

Silhouette of a two-blade wind turbine on a lattice tower at sunset

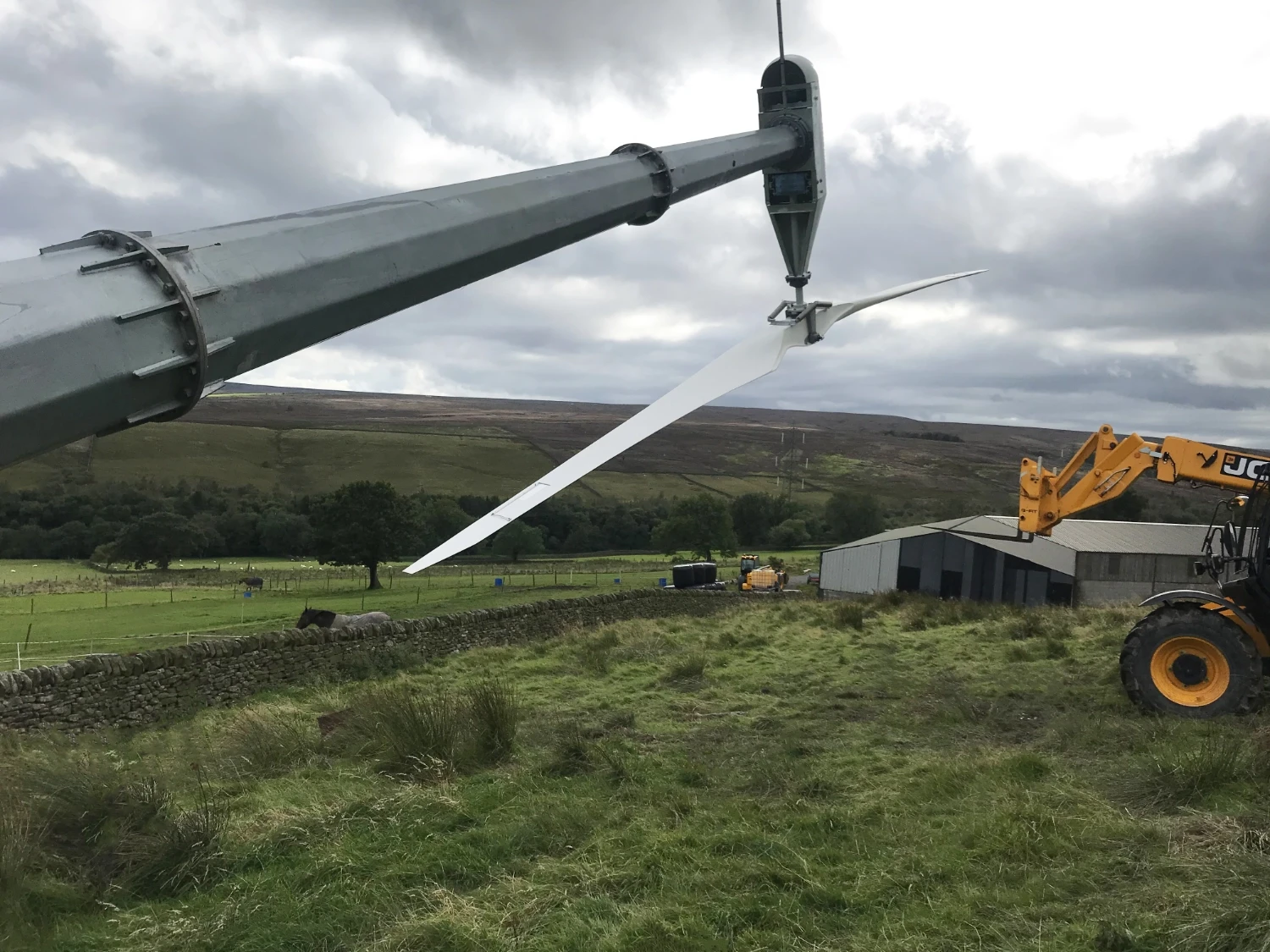

Two-blade rotor being fitted to a lowered tilt-up turbine tower beside a farm

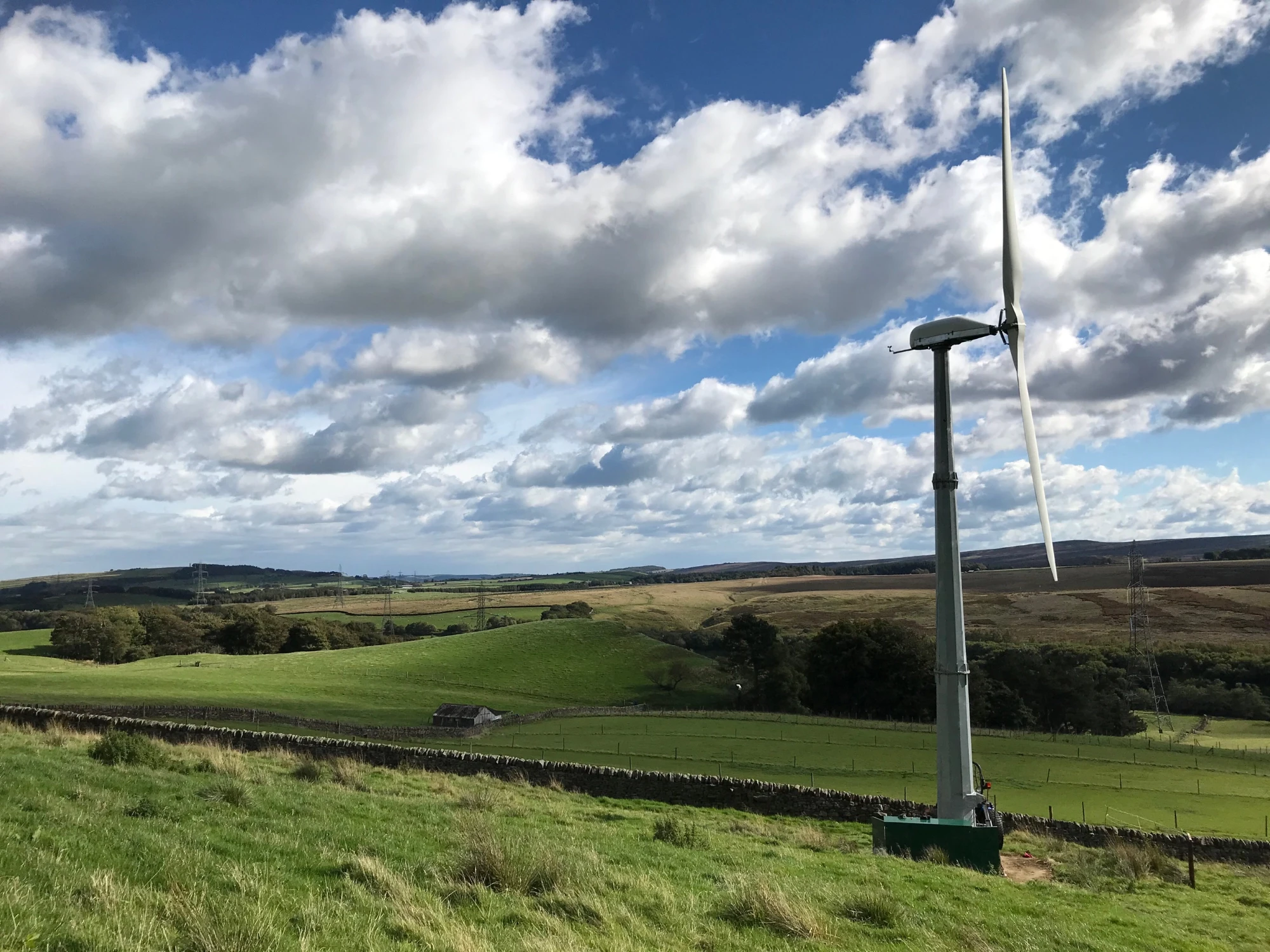

Two-blade wind turbine on a monopole tower above rolling farmland
