Medium wind turbines
A powerful 60 kW wind turbine engineered for utility-scale projects, micro-grids, and commercial sites requiring consistent, high-volume renewable energy.
Download Spec SheetCore performance specs of the E-60 HAWT
The E-60 delivers scalable, high-capacity wind power for grid-connected and hybrid systems. With advanced pitch control and a robust design, it's ideal for commercial, micro-grid, and distributed energy applications.
Rotor speed
Weight
Data sheet
Everything you need to know about the performance and build of this model in one place
TECHNICAL DETAILS
Generator
Type
Permanent Magnet
Maximum Power
70 kW
Rated Power
60 kW
Rotor
Configuration
Horizontal Axis
No. of Blades
3
Blade Material
Glass fibre
Blade Length
7.4 m
Rotor Diameter
15.8 m
Swept Area
196 m²
Nominal Rotor Speed
60 rpm
Pitch/Yaw
Active pitch
Wind
Cut-In Speed
2 m/s
Rated Wind Speed
11 m/s
Cut-Out Speed
30 m/s
Survival Speed
59.5 m/s
Weights
Nacelle/Rotor
6,000 kg
Towers
Lattice
18 – 36 m
Monopole
18 – 27 m
Tilt-Up
18 – 27 m
Design Parameters
Turbine Design Class
IEC 61400-2 Class II
Temperature Range
-20° to 50°C
Lifespan & Servicing
20 years, subject to regular maintenance
Real-world uses for this turbine
Built for locations that need reliable power without the grid
Industrial and agricultural operations
Supports irrigation, processing, and energy-intensive machinery in remote or high-wind industrial zones.

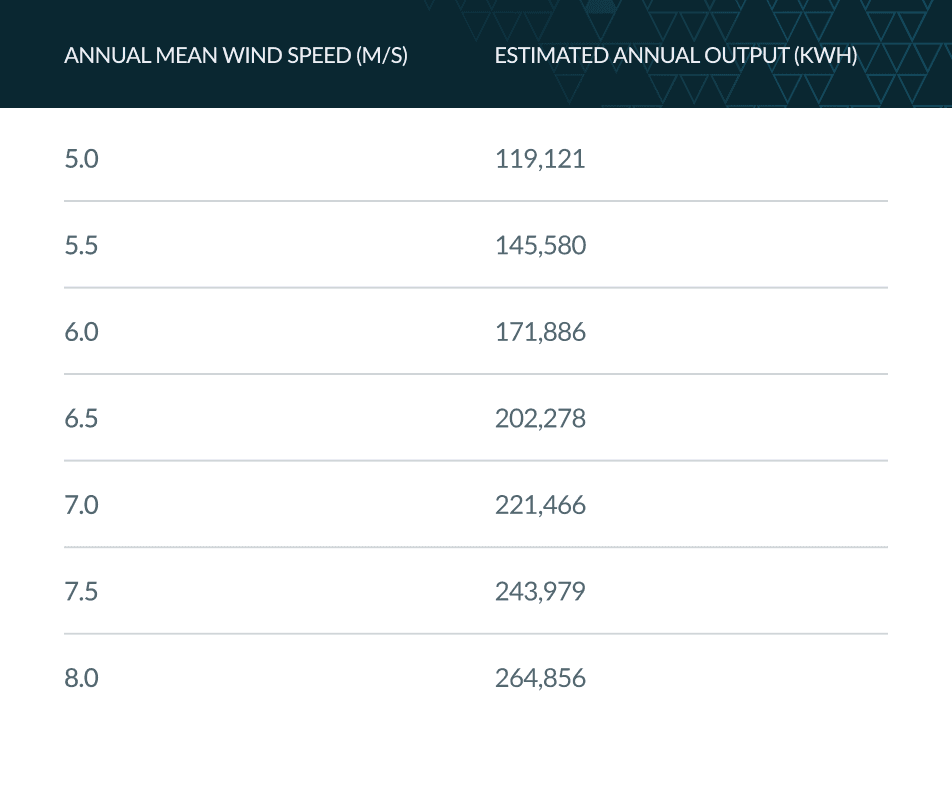

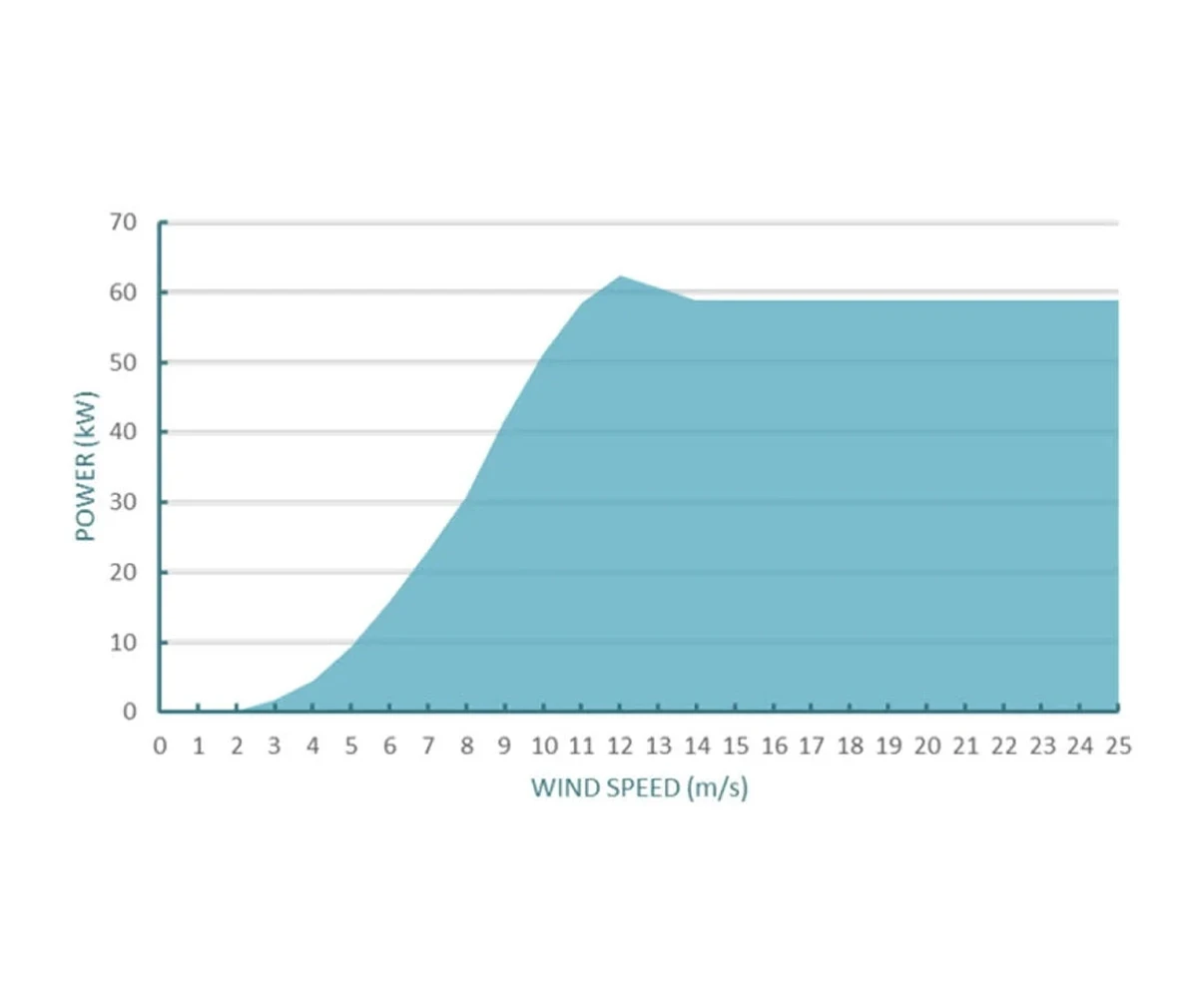

Performance
Understand your turbine’s output
See how this model performs and what kind of energy it can deliver in real conditions
Real results
Wind projects we’ve delivered
Case studies for any application
Explore how Ryse Energy has delivered renewable solutions across 10+ industries worldwide, from telecom to agriculture.

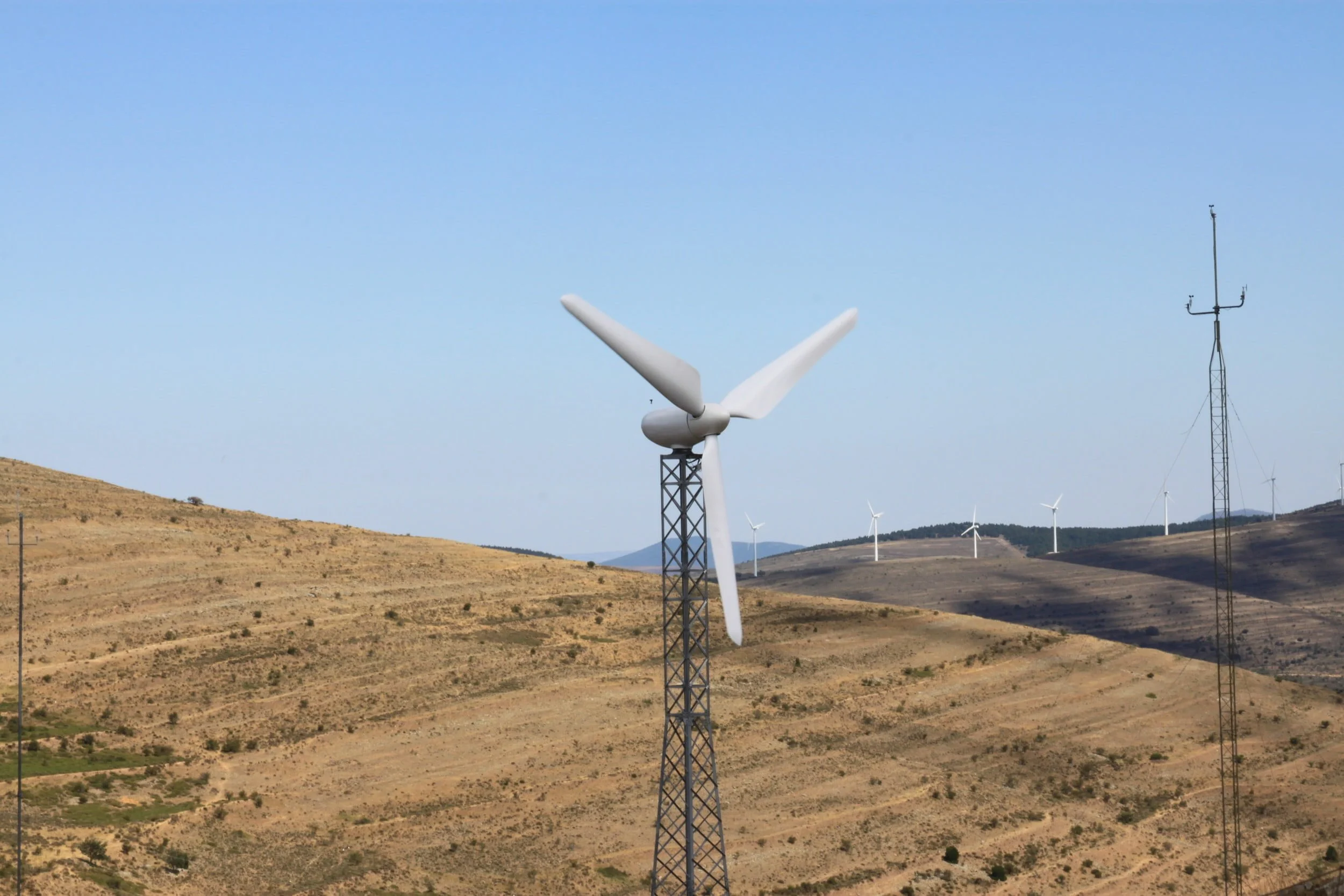

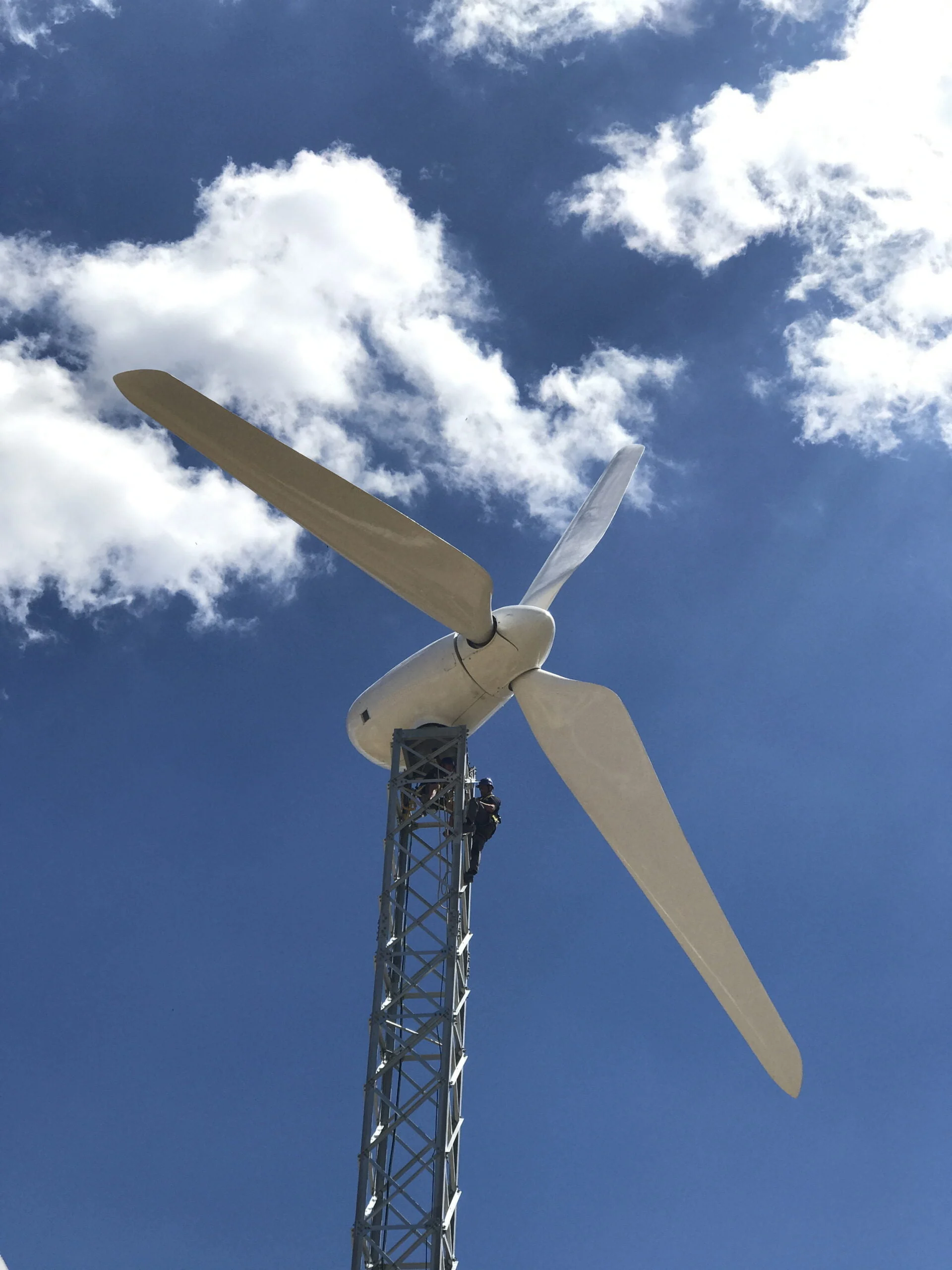

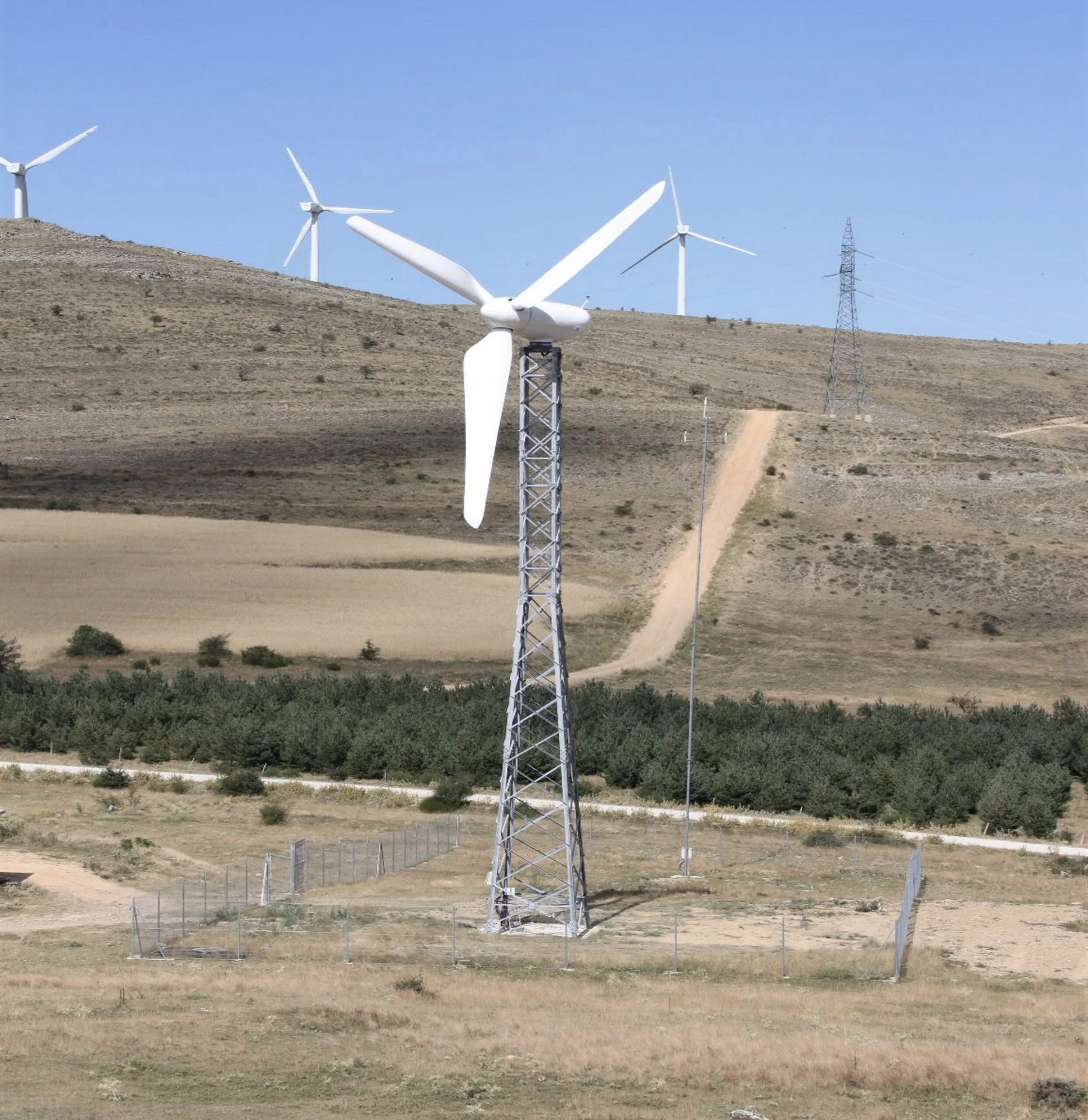

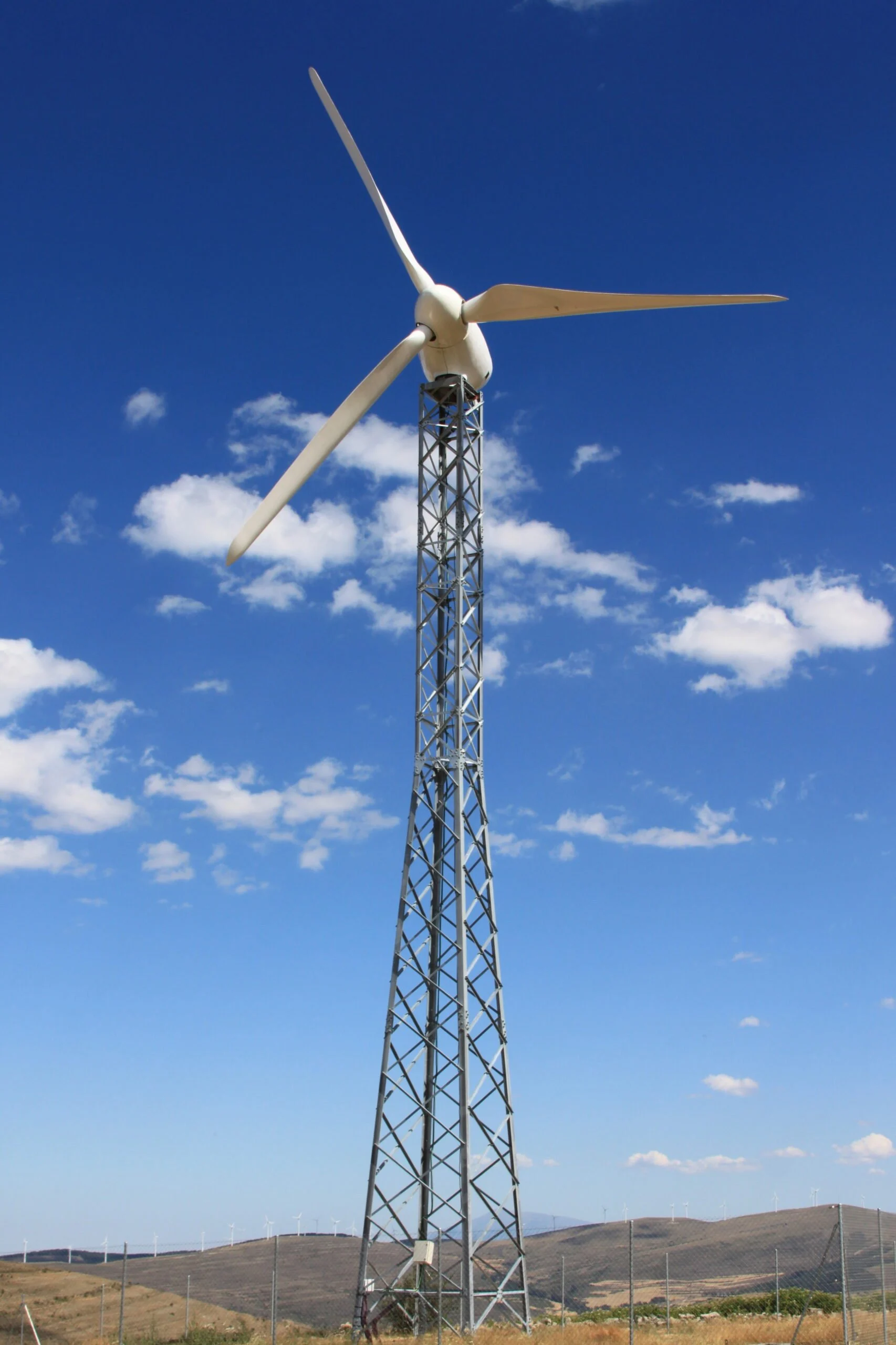

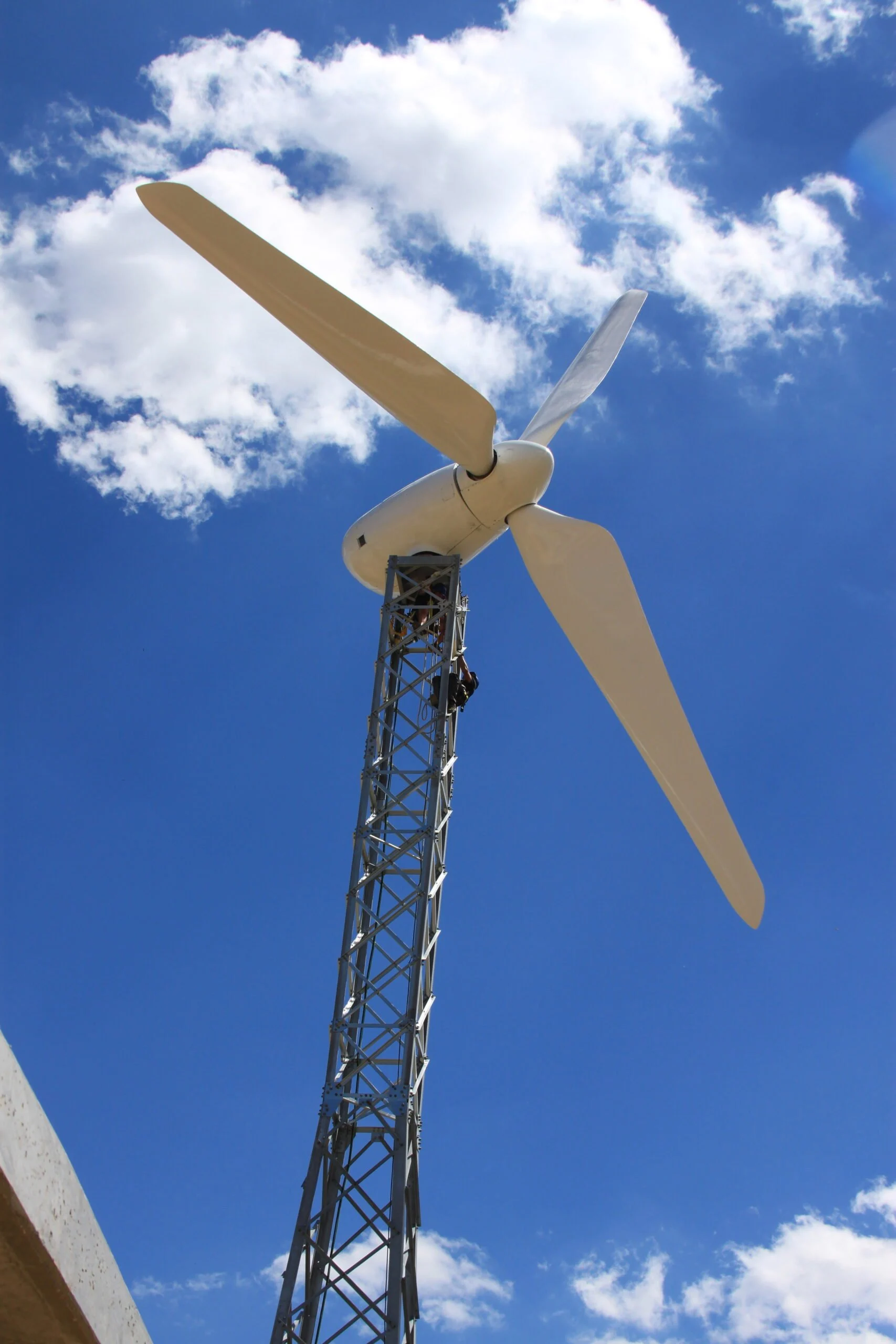

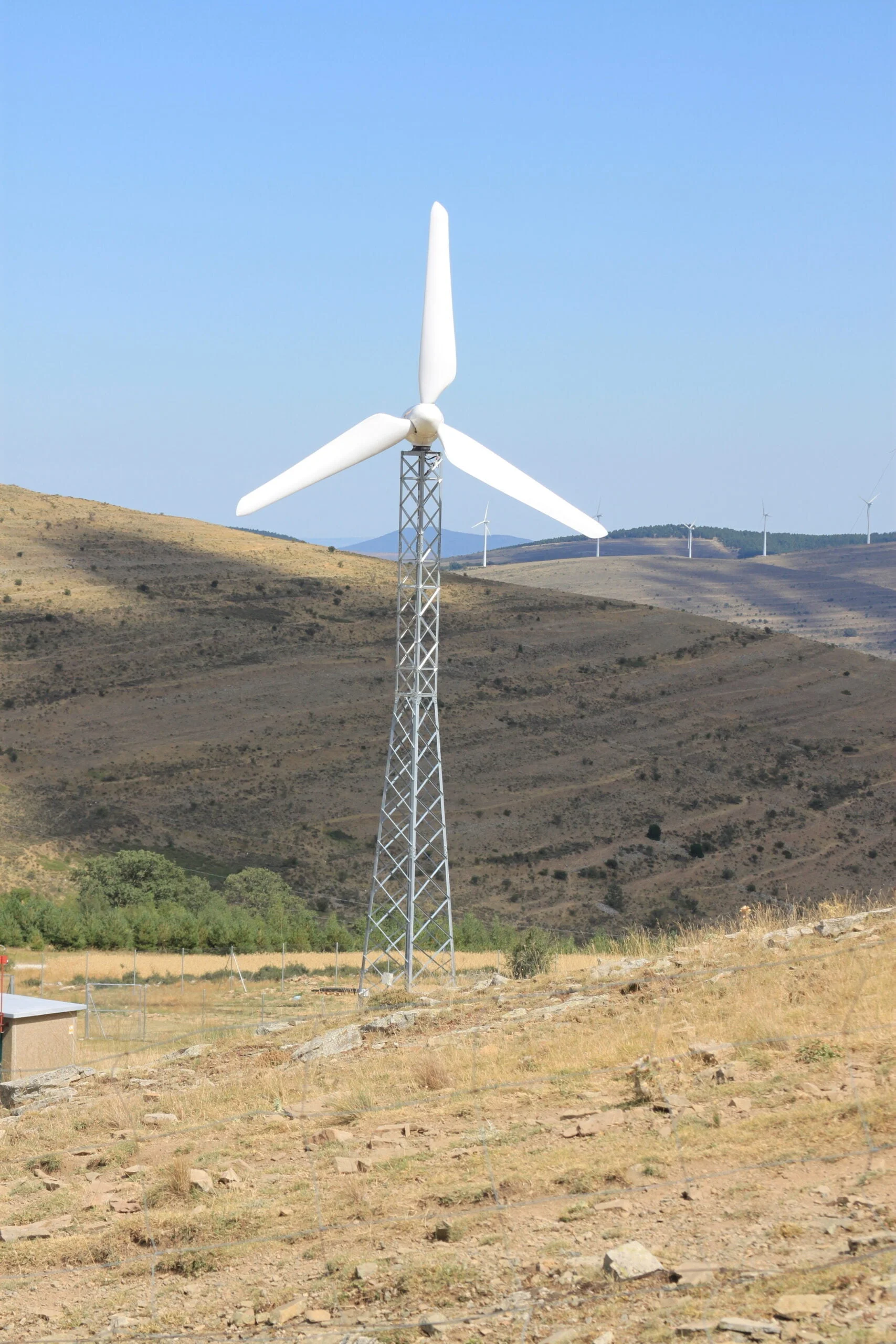

Gallery
See this turbine in action
Explore real-world installations and get a better sense of the scale, structure and design in the field
