E-5 HAWT
Reliable 5 kW wind power engineered for off-grid systems, remote sites, and critical infrastructure energy demands, such as telecoms in high-wind environments.
Download Spec SheetCore performance specs of the E-5 HAWT
Engineered for high-output performance, the HAWT 5 delivers reliable energy generation in off-grid and industrial environments. Below are the key specifications that define its power and durability in the field.
Rotor dimensions
Swept area: 14.5 m²
Diameter: 4.3 m
Radius: 2.15 m
Rotor speed
250 RPM
Optimised for steady wind conditions
Weight
165 kg
Built for reliable, long-term performance
Regulation type
Class I Passive
Safely regulates output in strong wind conditions

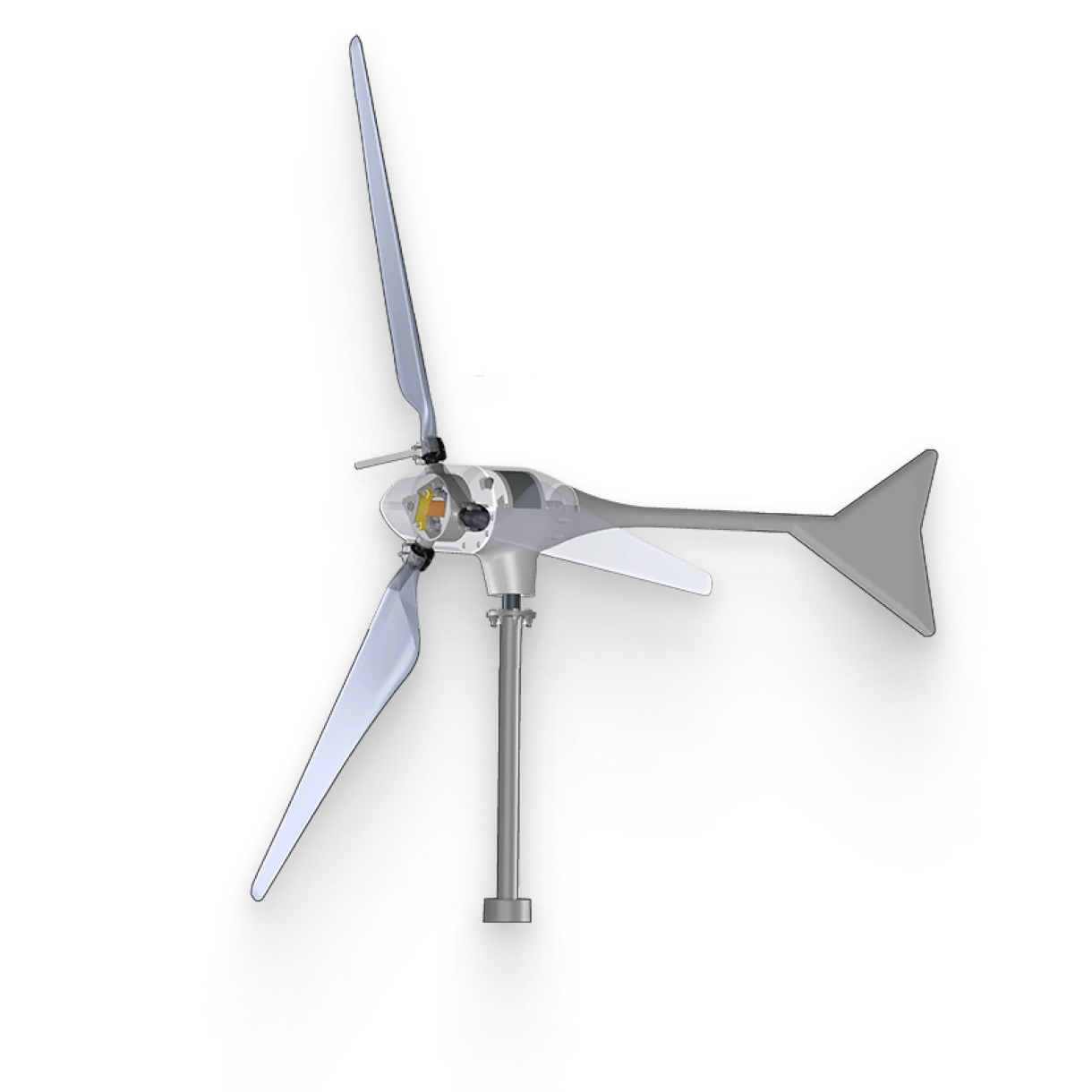

Mechanical characteristics of the E-5 HAWT
The HAWT 5 combines advanced materials and a sturdy mechanical structure to ensure long-lasting performance across rural and commercial energy systems.
Blades
Glass fibre, with a high-density polyurethane core and a root reinforcement provides optimum strangth and performance.

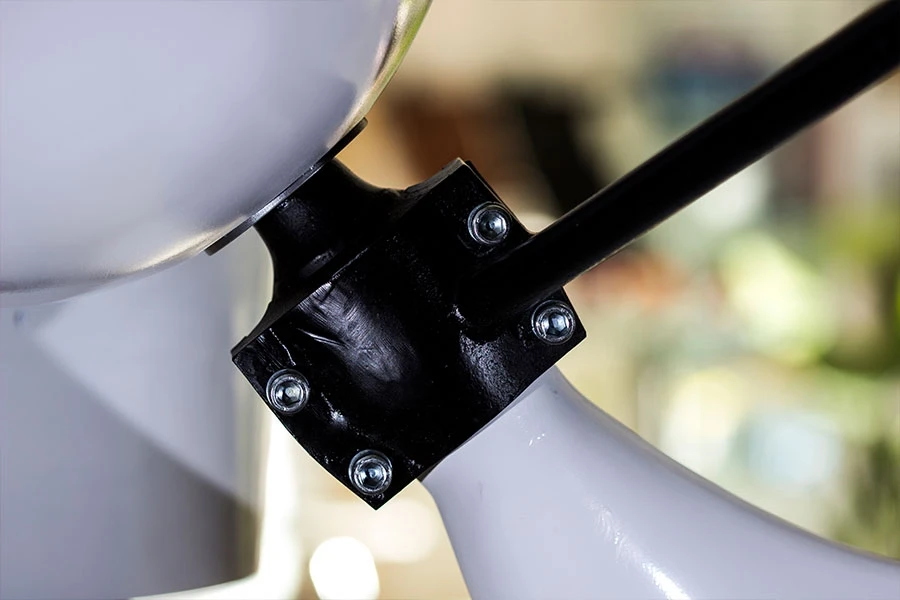

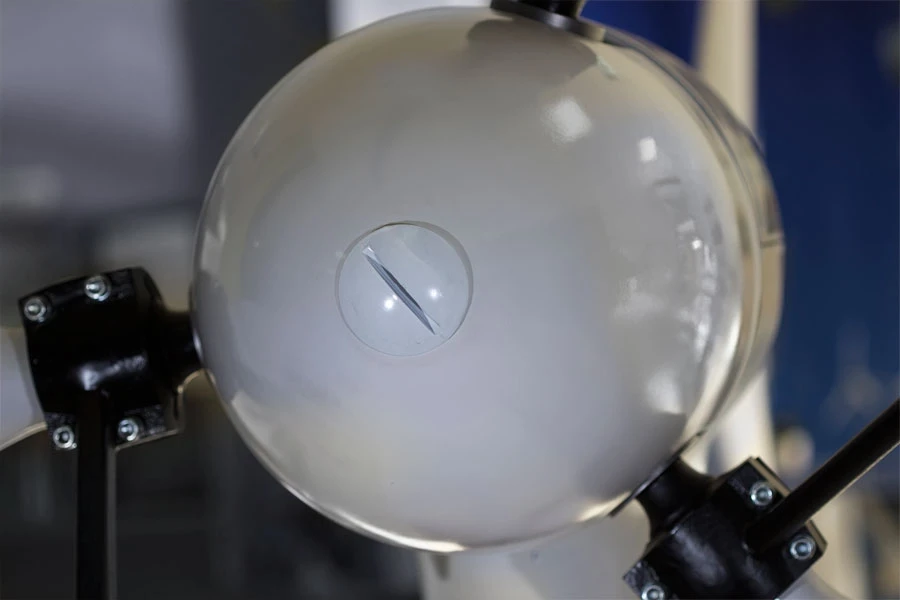

Variable pitch
Patented system allows for passive control of the angle of attack of the blades. This innovative system has 2 speeds of action: the first 30 degrees absorb wind gusts and the next 15 degrees act to limit runaway during sustained high winds.
Generator
A new design which optimizes production by keeping all copper conductors within the magnetic field. Together with its 20 poles and N50 neodymium magnets, increases the generation of energy by 15% from the previous model.

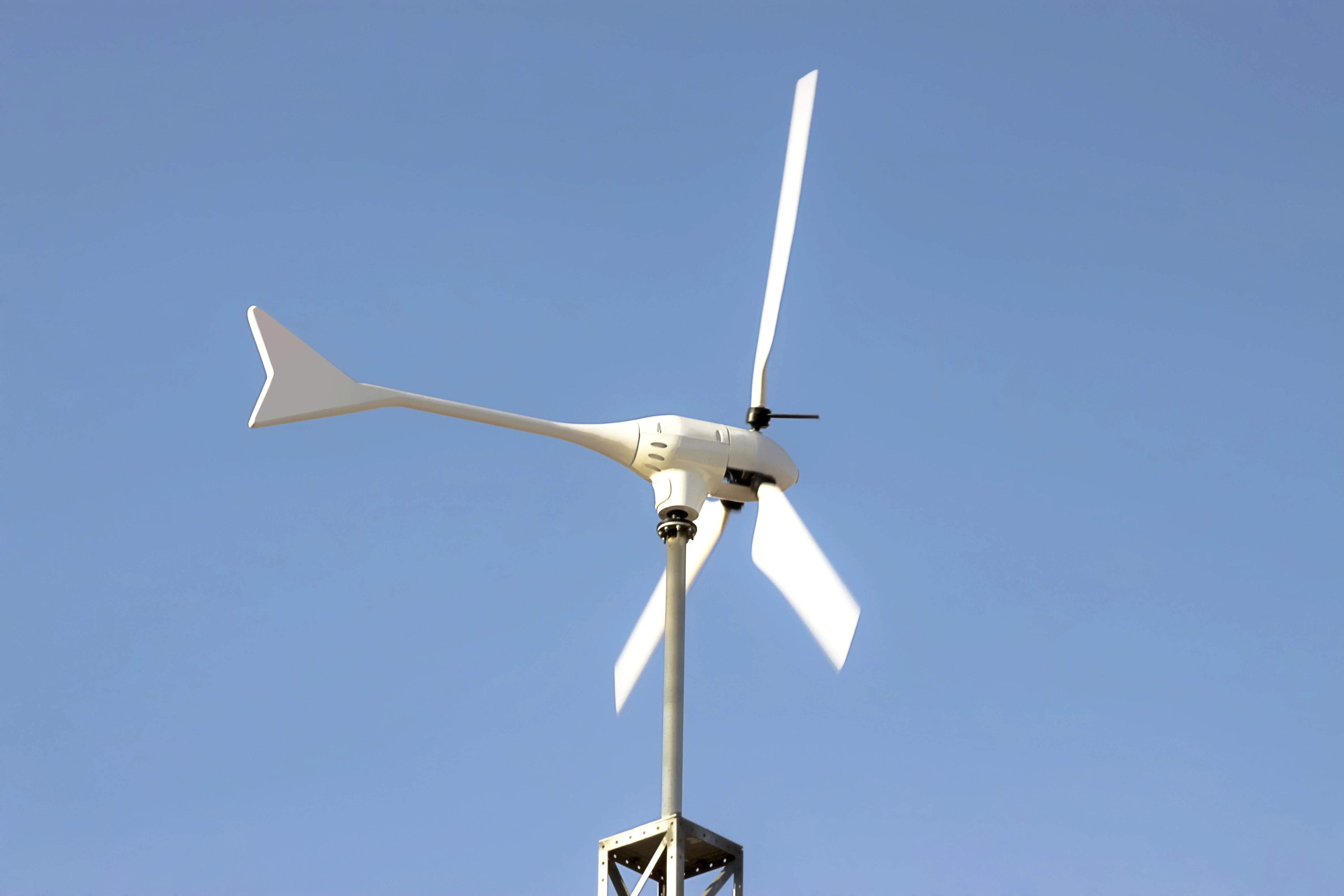

Steering rudder
A steel core embedded in high density polyurethane and coated with glass fibre helps to pitch tbhe turbine into the wind, maximizing energy output.
Controller & monitoring
Configurable controller electronics allows the turbine to adapt to the type of grid or batteriesconnected, providing maximum energy generation. Remote monitoring ensures the wind turbine is operating at its peak performance at all times.
Data sheet
Everything you need to know about the performance and build of this model in one place
TECHNICAL DETAILS
Generator
Type
Permanent Magnet
Maximum Power
5.5 kW
Rated Power
4 kW
Rotor
Configuration
Horizontal Axis
No. of Blades
3
Blade Material
Glass fibre
Blade Length
2.15 m
Rotor Diameter
4.3 m
Swept Area
14.5 m²
Nominal Rotor Speed
250 rpm
Pitch/Yaw
Upwind passive system with steering rudder
Wind
Cut-In Speed
2 m/s
Rated Wind Speed
11 m/s
Cut-Out Speed
60 m/s
Survival Speed
70 m/s
Weights
Nacelle/Rotor
165 kg
Towers
Lattice
6 – 27 m
Monopole
6 – 27 m
Tilt-Up
6 – 27 m
Design Parameters
Turbine Design Class
IEC 61400-2 Class I
Temperature Range
-20° to 50°C
Lifespan & Servicing
20 years, subject to regular maintenance
Real-world uses for this turbine
Built for locations that need reliable power without the grid
Micro-grid and off-grid installations
Powers rural communities, critical facilities, and energy islands where grid access is limited or unavailable.

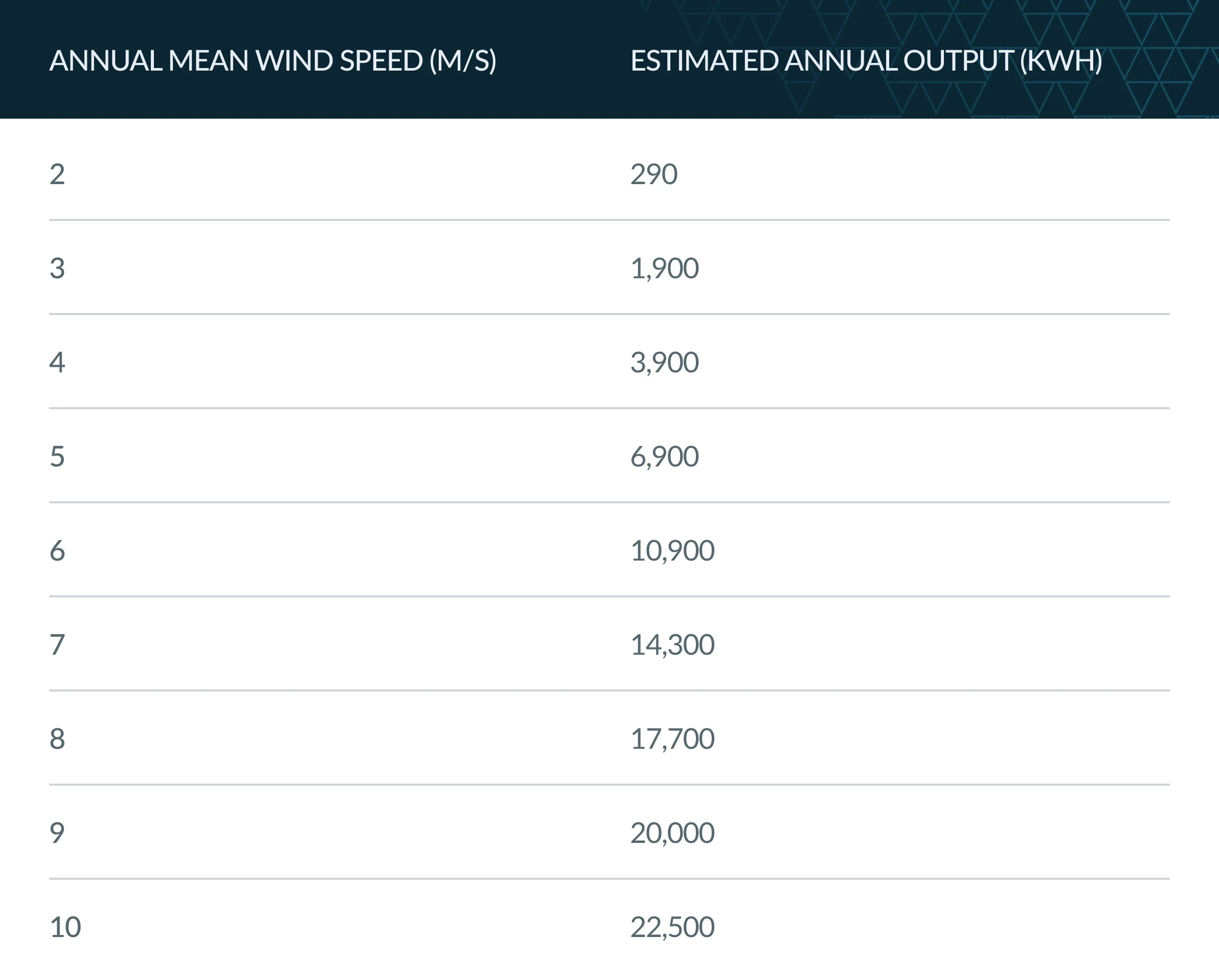

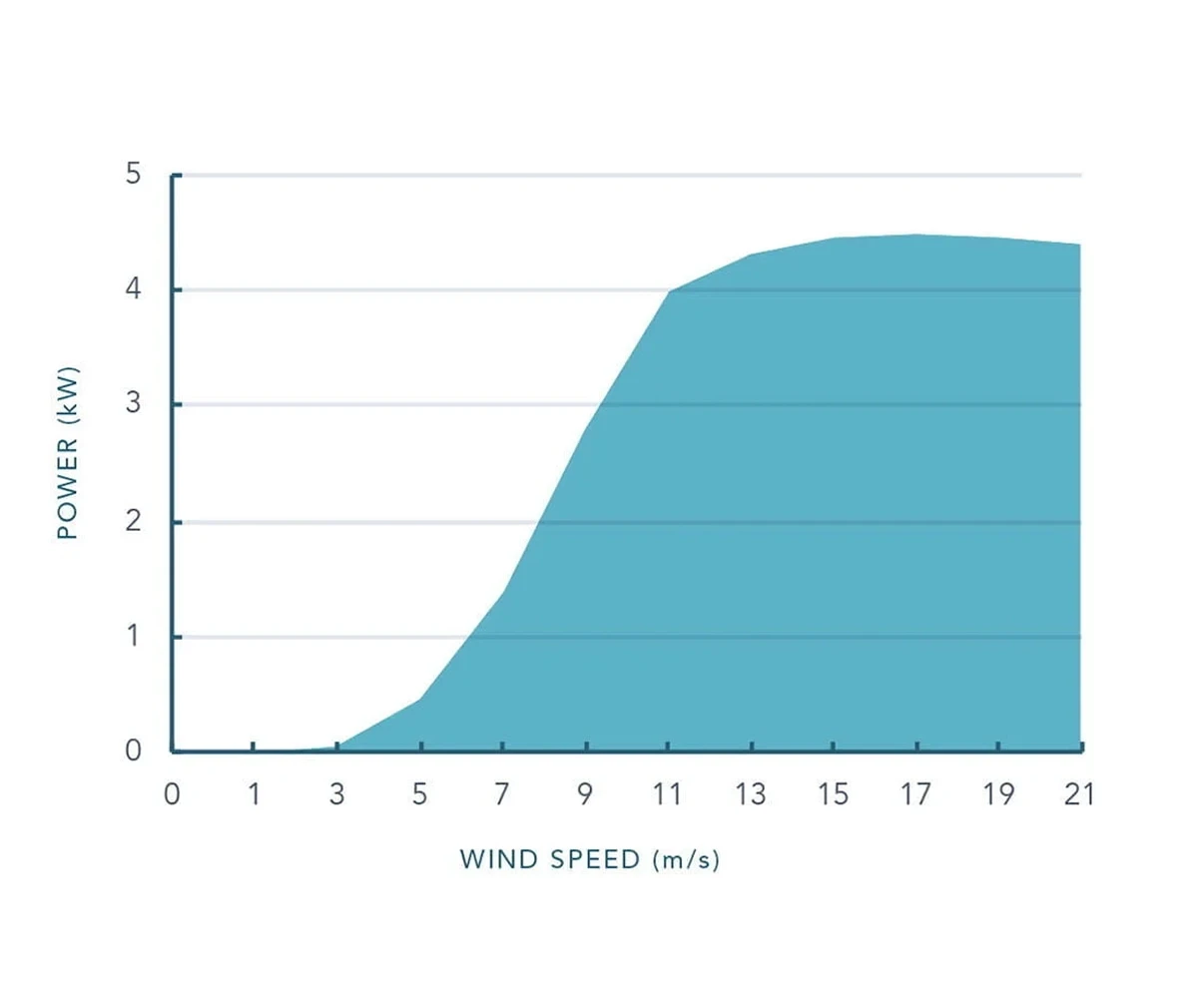

Performance
Understand your turbine’s output
See how this model performs and what kind of energy it can deliver in real conditions
Sound levels
How quiet is it?
Built for dependable power without disrupting the surroundings, the HAWT 5 maintains low noise levels suitable for rural and agricultural zones.
48 dB (A)
As quiet as a typical living room
60 meters
41 dB (A)
Roughly equal to a quiet library at 80m
80 meters
35 dB (A)
Quiet room at night
180 meters
Real results
Wind projects we’ve delivered
Over 100 case studies and counting
Explore how Ryse Energy has delivered renewable solutions across 10+ industries worldwide, from telecom to agriculture.

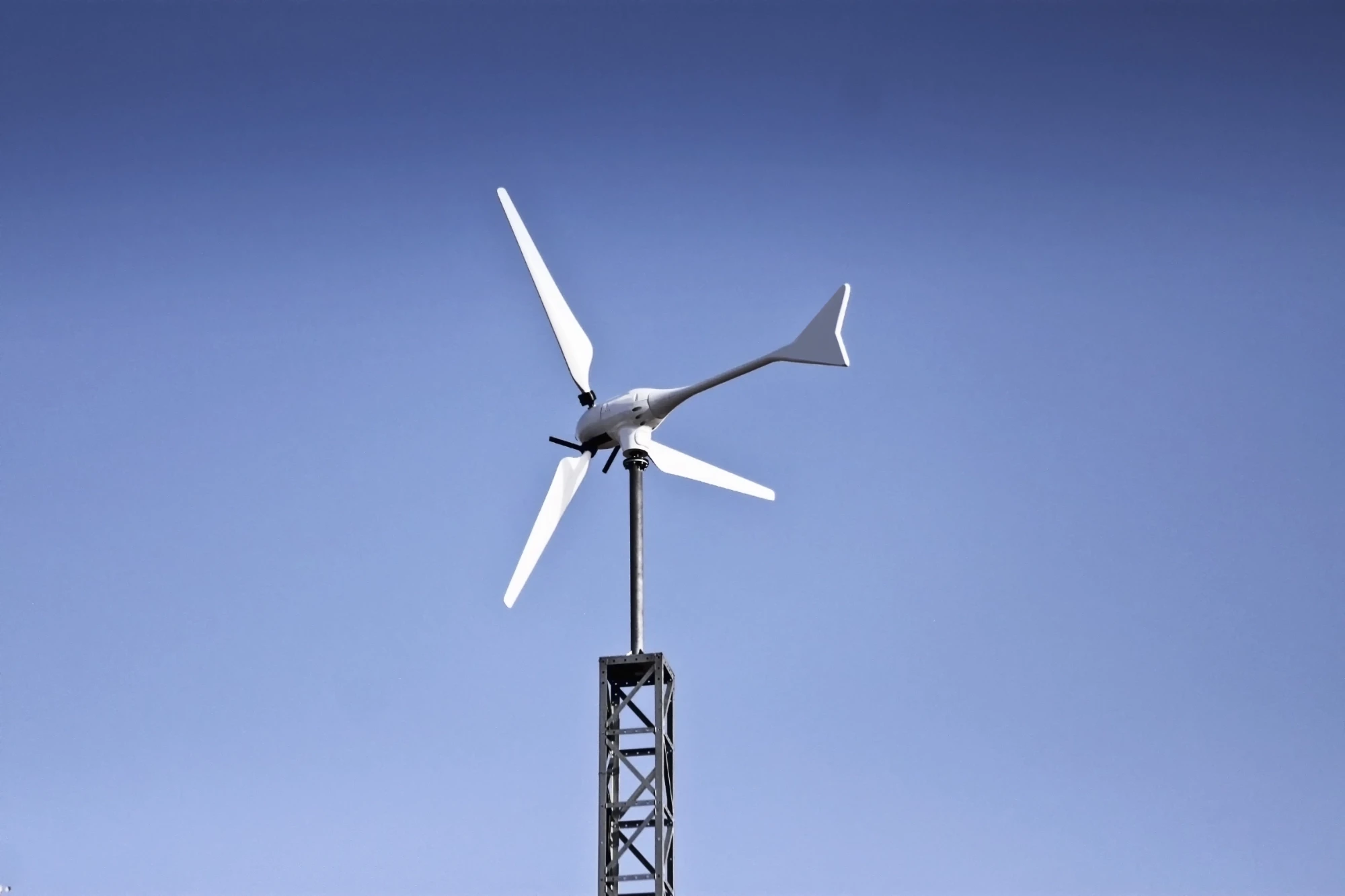

Gallery
