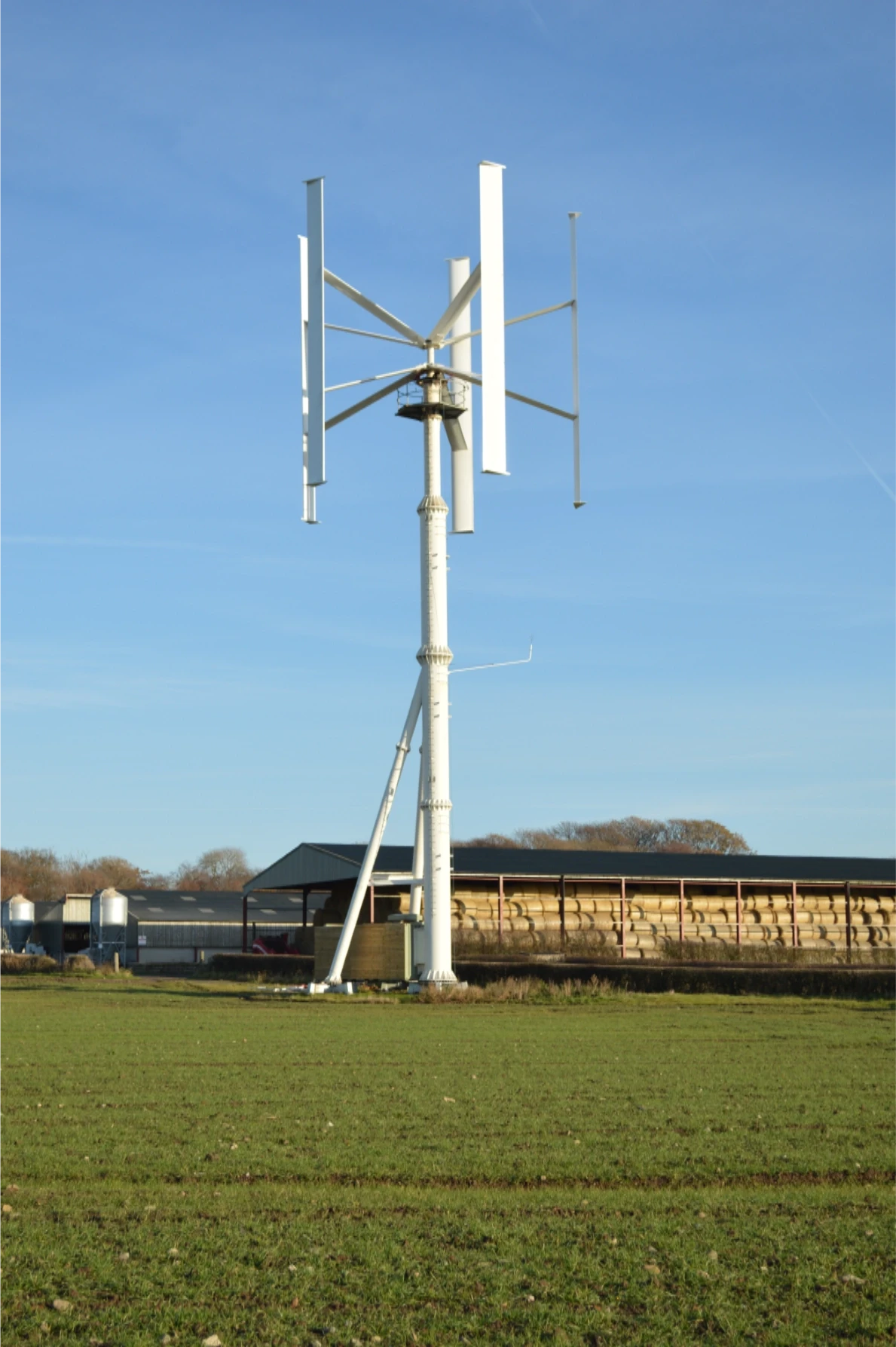

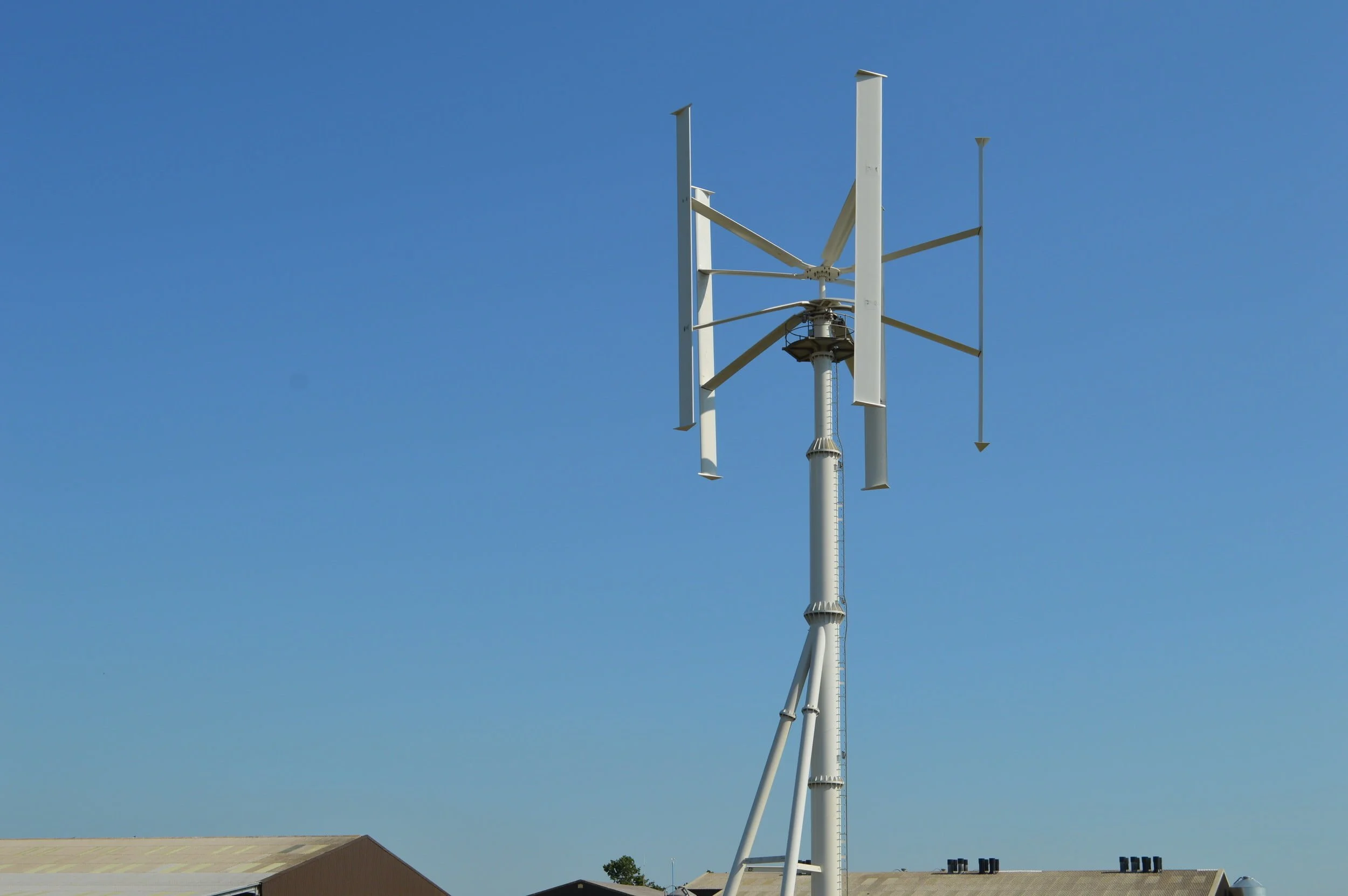

N-55 VAWT

A 55 kW vertical axis wind turbine engineered for urban, remote, and off-grid environments. Built for reliable performance in turbulent wind conditions with minimal noise and visual impact.

Download Spec Sheet

Talk to Our Team

Core performance specs of the N-55 VAWT

The N-55 is a high-capacity vertical axis wind turbine designed for quiet, low-maintenance operation in complex wind environments. Its 55 kW output and omni-directional design make it ideal for urban, coastal, and off-grid sites where horizontal turbines aren’t practical.

Rotor dimensions

Swept area: 196 m²

Diameter: 14 m

Radius: 14 m

Rotor speed

34 RPM

Optimised for steady wind conditions

Regulation type

Class II Active

Safely regulates output in strong wind conditions

Structural characteristics of the N-55 VAWT

With no need to face the wind and simplified mechanical systems, the N-55 excels in urban, coastal, and complex wind environments where traditional turbines fall short.

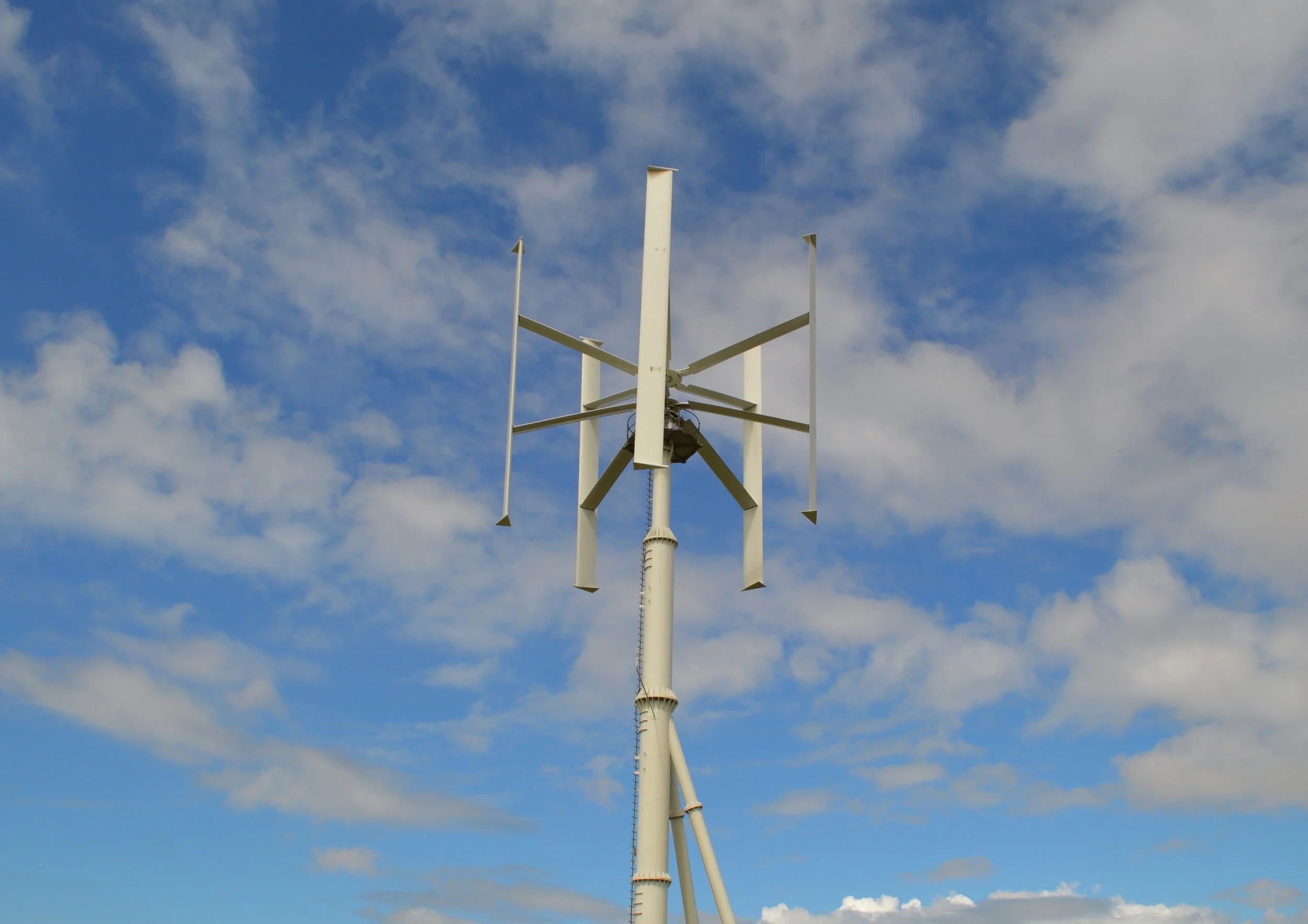

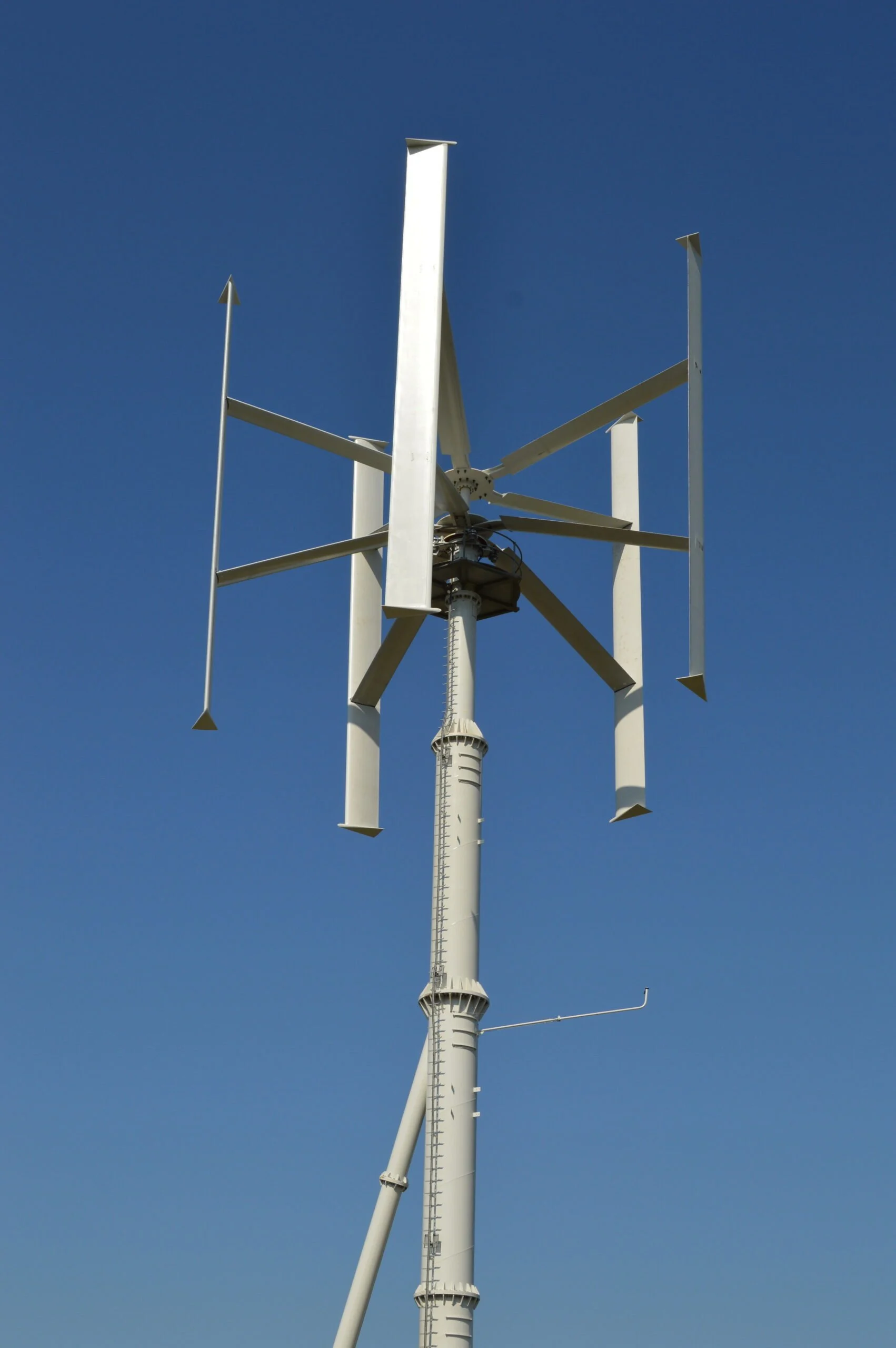

Blades

Delta shaped blade tips improve the wind turbine blade performance, similar to wing tips on modern aircraft. Detachable blade tips during transportation reduce the overall blade length, allowing the blade to fit in a standard shipping container, reducing the shipping costs for customers.

Fixed Pitch/Yaw

Rotor does not require sensors or motors to align the wind turbine with the wind, thus eliminating the need for complex control systems. The rotor can harness the wind from any direction, offering superior performance in turbulent and gusty wind conditions.

Work Platform

Built-in work basket and ladder allow servicing and maintenance to be performed easily and safely.

Anemometer

Wind speed sensor accurately tracks the behaviour of the wind in real time, in order to improve the turbine’s performance and safety.

Anemometer

Wind speed sensor accurately tracks the behaviour of the wind in real time, in order to improve the turbine’s performance and safety.

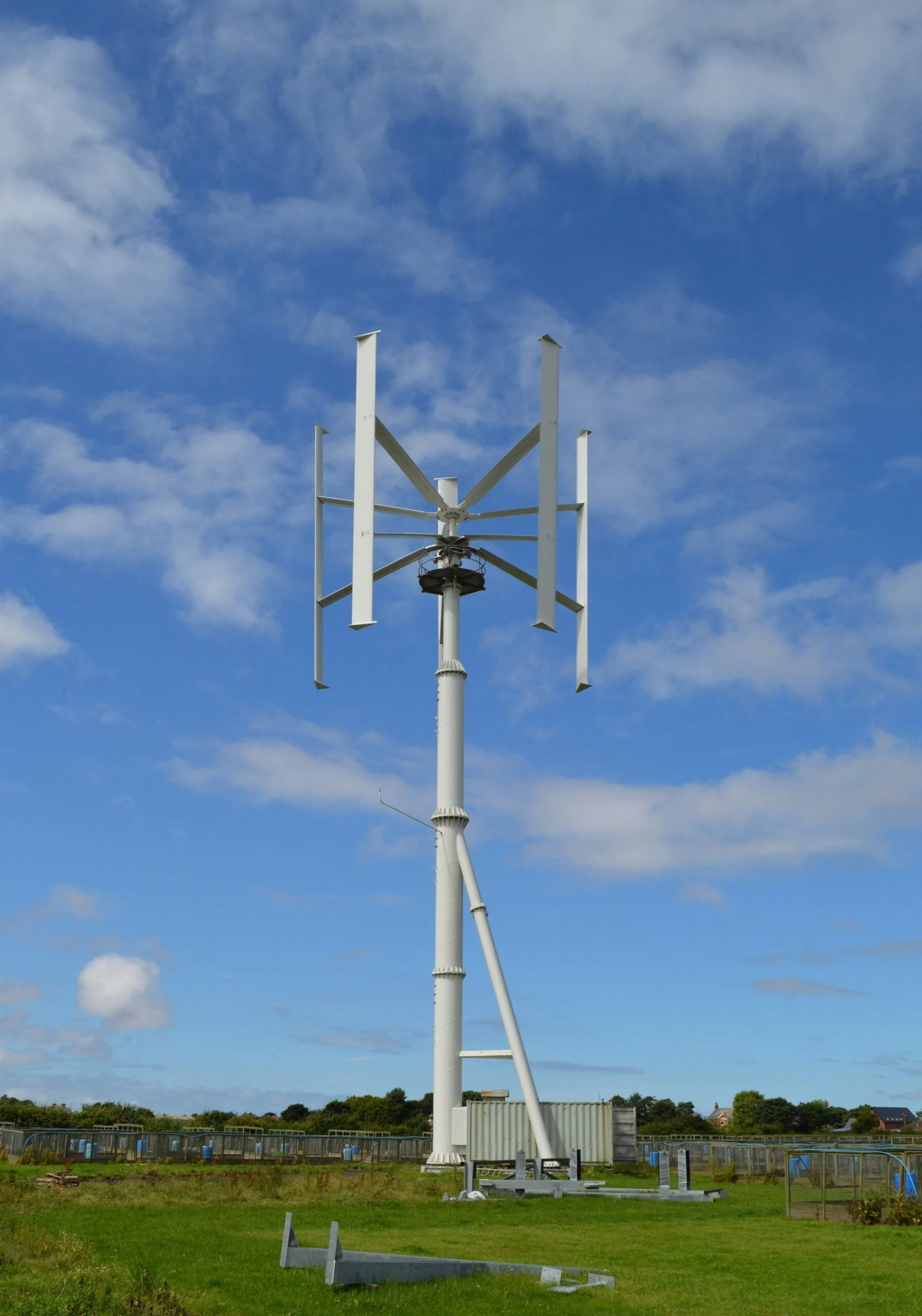

Structure

Tripod tower & screw-pile foundation for increased stability and environmentally friendly, concrete-free foundations.

Containerised Generation & Control

Majority of major components at ground level, simplifying installation, operation and maintenance. Control system regulates rotor speed during high winds and does not require blade pitch control, simplifying the mechanical control requirements.

Data sheet

Everything you need to know about the performance and build of this model in one place

TECHNICAL DETAILS

Generator

Type

Induction

Maximum Power

65 kW

Rated Power

55 kW

Rotor

Configuration

Vertical Axis

No. of Blades

3 or 5

Blade Material

Glass fibre

Blade Length

14 m

Rotor Diameter

14 m

Swept Area

196 m²

Nominal Rotor Speed

34 rpm

Pitch/Yaw

Fixed

Wind

Cut-In Speed

3.5 m/s

Rated Wind Speed

11 m/s

Cut-Out Speed

25 m/s (Variable)

Survival Speed

59.5 m/s

Weights

Hub

8,200 kg

Rotor Assembly

5,000 kg

Tower

19,500 kg

Towers

Monopole Tripod

23 – 30 m

Design Parameters

Turbine Design Class

IEC 61400-2 Class III

Temperature Range

-20° to 50°C

Lifespan & Servicing

20 years, subject to regular maintenance

Get the full specs and install details

Everything you need to plan, install and integrate this turbine is ready to download

Download Spec Sheet

Blade install guide

Get the full specs and install details

Everything you need to plan, install and integrate this turbine is ready to download

Download Spec Sheet

Blade install guide

Real-world uses for this turbine

Built for locations that need reliable power without the grid

Urban and built environments

Ideal for installations near buildings or populated areas where quiet, low-profile energy generation is essential.

Urban and built environments

Ideal for installations near buildings or populated areas where quiet, low-profile energy generation is essential.

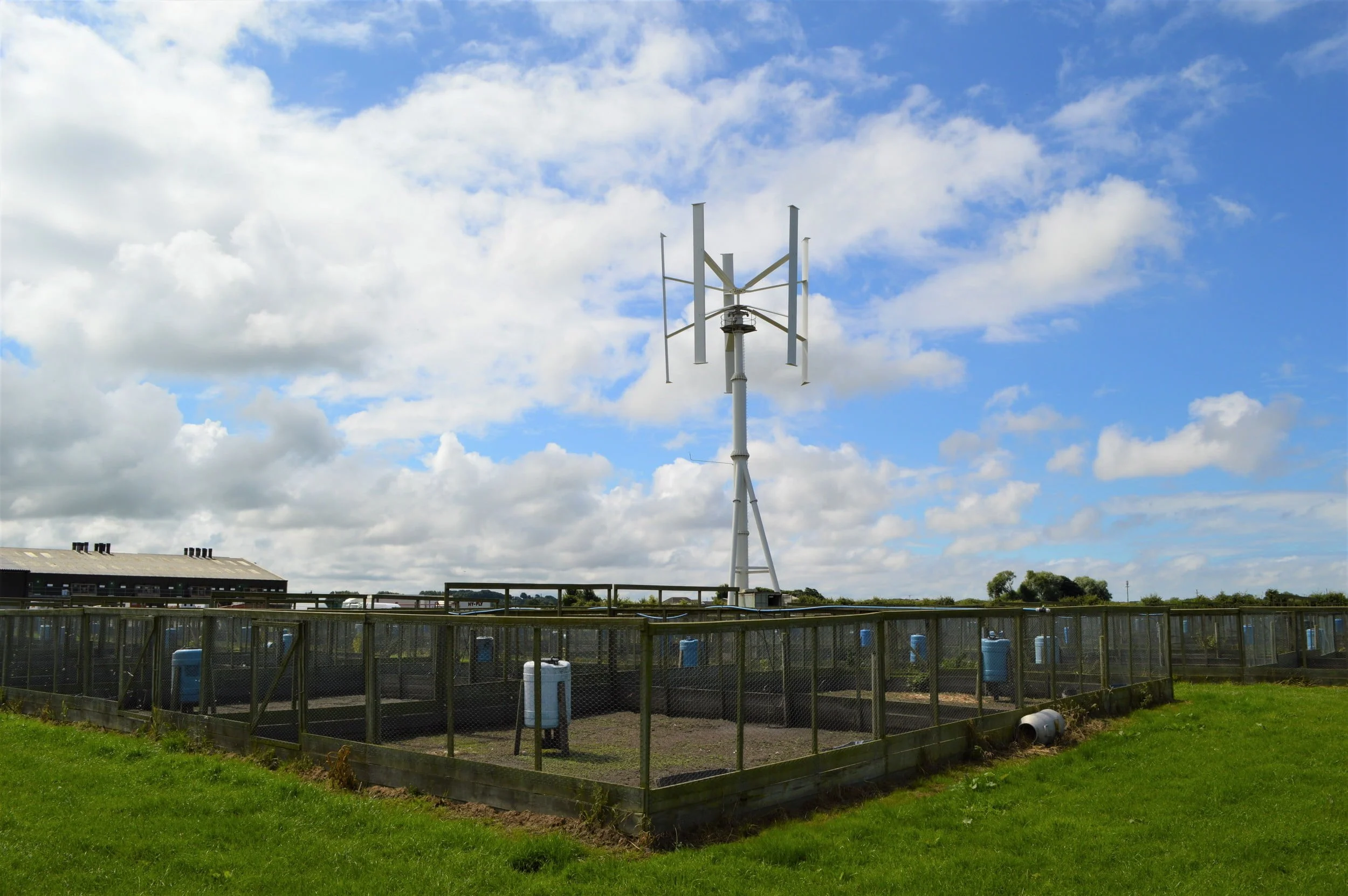

Remote and off-grid sites

Delivers stable wind power in areas with turbulent or multidirectional wind, without the need for complex control systems.

Coastal and island communities

Resilient to harsh weather and variable wind conditions, with minimal maintenance needs and simple installation.

Coastal and island communities

Resilient to harsh weather and variable wind conditions, with minimal maintenance needs and simple installation.

Infrastructure with access limitations

With ground-level access and a built-in work platform, the N-55 is perfect for sites where service access is a challenge.

Infrastructure with access limitations

With ground-level access and a built-in work platform, the N-55 is perfect for sites where service access is a challenge.

Talk to Our Team

Performance

Understand your turbine’s output

See how this model performs and what kind of energy it can deliver in real conditions

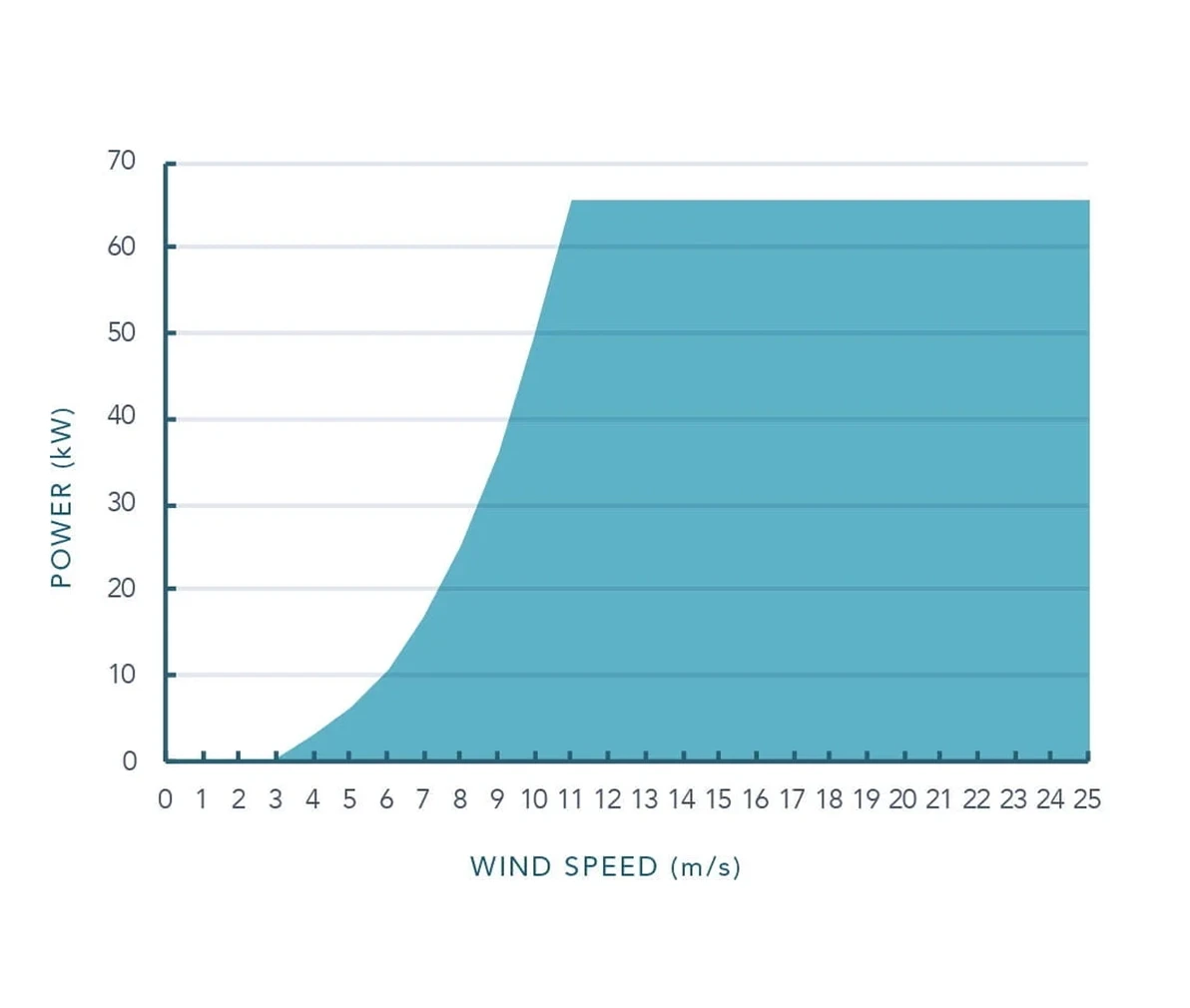

Power curve

This chart displays the N-55 HAWT’s power output across varying wind speeds, helping users understand how the turbine performs in different environmental conditions.

Talk to our team

Power curve

This chart displays the N-55 HAWT’s power output across varying wind speeds, helping users understand how the turbine performs in different environmental conditions.

Talk to our team

Energy Curve

Visualising the estimated monthly energy yield based on average wind speed is helpful for site planning and feasibility

Talk to our team

Energy Curve

Visualising the estimated monthly energy yield based on average wind speed is helpful for site planning and feasibility

Talk to our team

Sound levels

How quiet is it?

Thanks to its vertical axis and low-speed rotor design, the N-55 is exceptionally quiet, making it a strong option for urban or built-up environments where sound matters.
