Small wind turbines
E-3 HAWT
Engineered for high-output performance in land-based environments, our small wind turbines deliver consistent, off-grid power for a wide range of industrial and remote applications.
Download Spec SheetCore performance specs of the E-3 HAWT
Designed to perform in high-wind conditions, our small wind turbines combine durability, advanced control systems, and high-efficiency output. Below are four essential metrics that define the system’s performance and suitability for off-grid, land-based installations.
Rotor dimensions
Swept area: 11.34 m2
Diameter: 3.8 m
Radius: 1.9 m
Rotor speed
250 RPM
Optimised for steady wind conditions
Weight
125 kg
Built for reliable, long-term performance
Regulation type
Class I Passive
Safely regulates output in strong wind conditions
Core characteristics of the E-3 HAWT
From cold climates to remote installations, the E-3 is engineered with simple, rugged components that deliver reliable energy with minimal maintenance in even the harshest conditions.
Blades
Glass fibre, with a high-density polyurethane core and a root reinforcement provides optimum strangth and performance.
Variable pitch
Patented system allows for passive control of the angle of attack of the blades. This innovative system has 2 speeds of action: the first 30 degrees absorb wind gusts and the next 15 degrees act to limit runaway during sustained high winds.
Generator
A new design which optimizes production by keeping all copper conductors within the magnetic field. Together with its 20 poles and N50 neodymium magnets, increases the generation of energy by 15% from the previous model.
Steering rudder
A steel core embedded in high density polyurethane and coated with glass fibre helps to pitch tbhe turbine into the wind, maximizing energy output.
Controller & monitoring
Configurable controller electronics allows the turbine to adapt to the type of grid or batteriesconnected, providing maximum energy generation. Remote monitoring ensures the wind turbine is operating at its peak performance at all times.
Data sheet
Everything you need to know about the performance and build of this model in one place
TECHNICAL DETAILS
Generator
Type
Permanent Magnet
Maximum Power
3 kW
Rated Power
1.9 kW
Rotor
Configuration
Horizontal Axis
No. of Blades
3
Blade Material
Glass fibre
Blade Length
1.9 m
Rotor Diameter
3.8 m
Swept Area
11.34 m2
Nominal Rotor Speed
250 rpm
Pitch/Yaw
Upwind passive system with steering rudder
Wind
Cut-In Speed
2 m/s
Rated Wind Speed
11 m/s
Cut-Out Speed
60 m/s
Survival Speed
70 m/s
Weights
Nacelle/Rotor
125 kg
Towers
Lattice
6 – 27 m
Monopole
6 – 27 m
Tilt-Up
6 – 27 m
Design Parameters
Turbine Design Class
IEC 61400-2 Class I
Temperature Range
-20° to 50°C
Lifespan & Servicing
20 years, subject to regular maintenance
Real-world uses for this turbine
Built for locations that need reliable power without the grid
Off-grid and micro-grid systems
Ideal for powering small communities or standalone systems where grid access is limited or unreliable

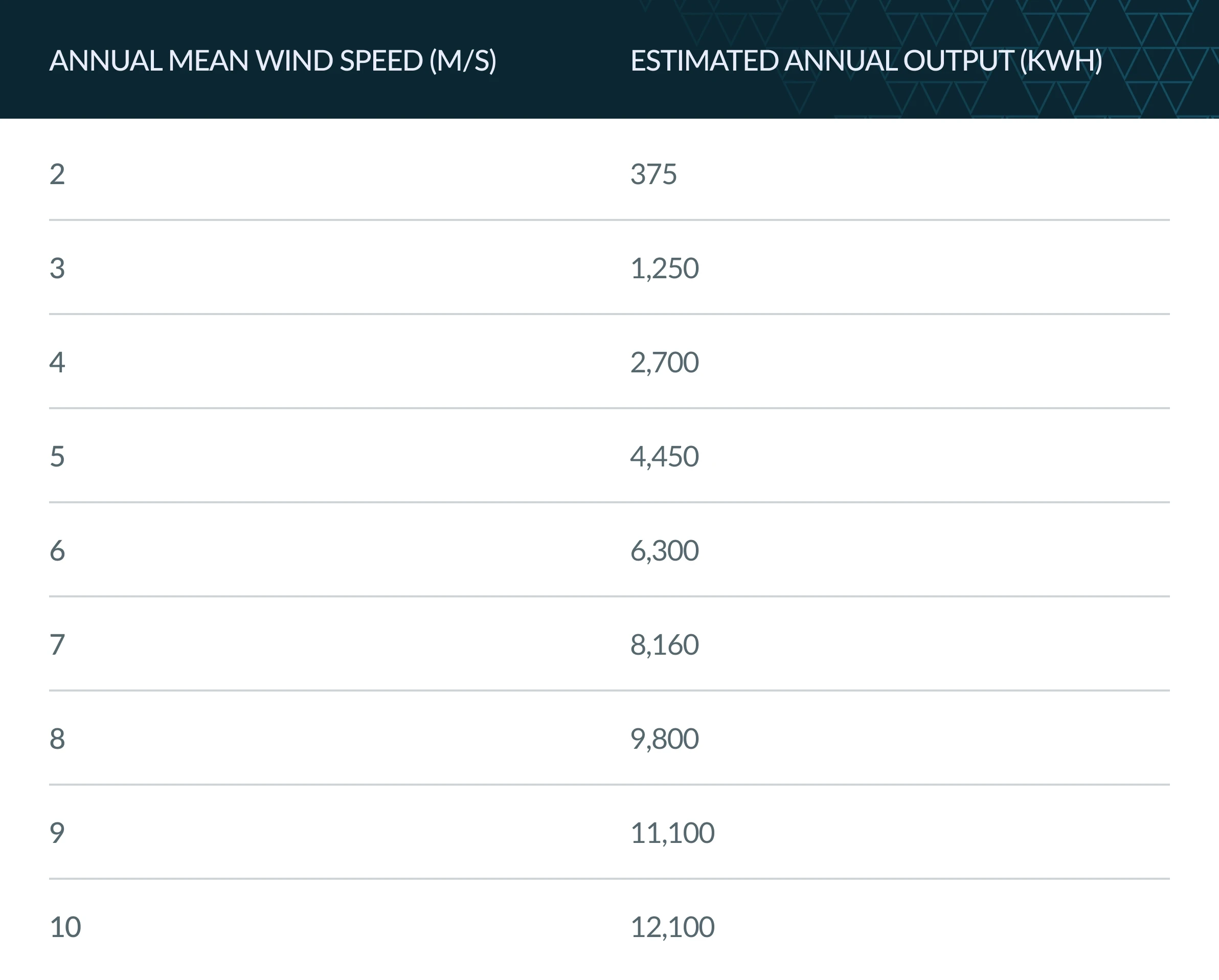

Performance
Understand your turbine’s output
See how this model performs and what kind of energy it can deliver in real conditions
Sound levels
How quiet is it?
Measured at multiple distances, the E-3 HAWT operates at impressively low sound levels, comparable to everyday indoor environments.
48 dB (A)
As quiet as a typical living room
60 meters
41 dB (A)
Roughly equal to a quiet library at 80m
80 meters
35 dB (A)
Quiet room at night
180 meters
Real results
Wind projects we’ve delivered
Over 100 case studies and counting
Explore how Ryse Energy has delivered renewable solutions across 10+ industries worldwide, from telecom to agriculture.

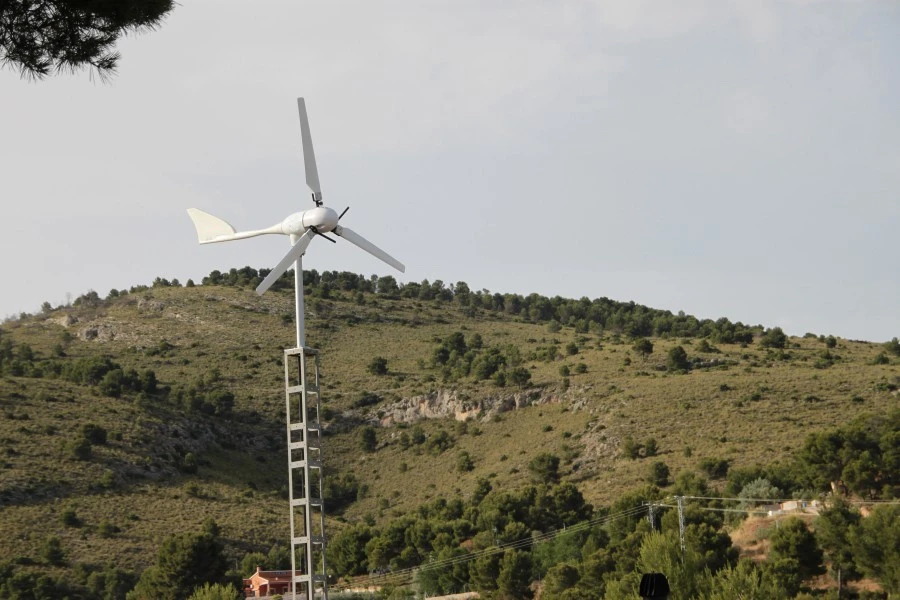

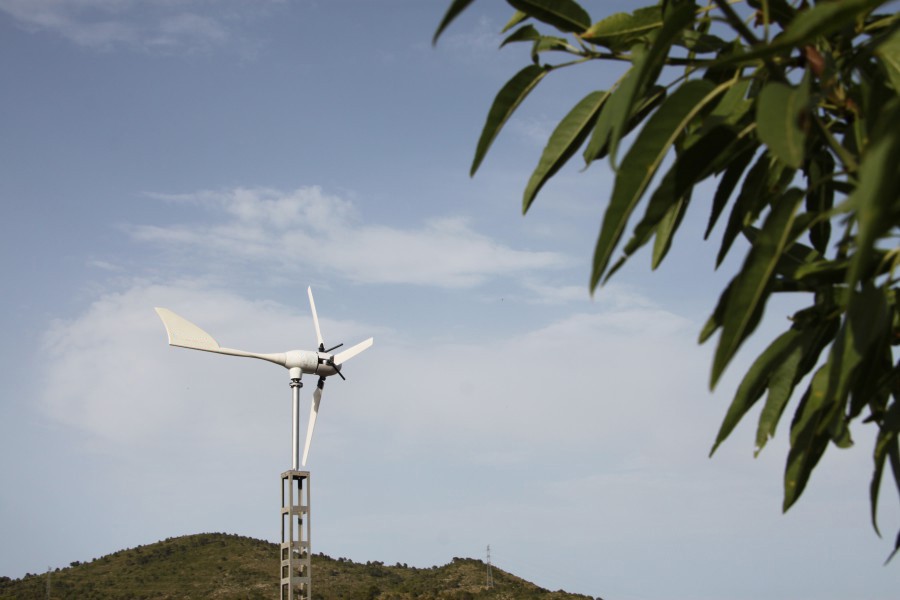

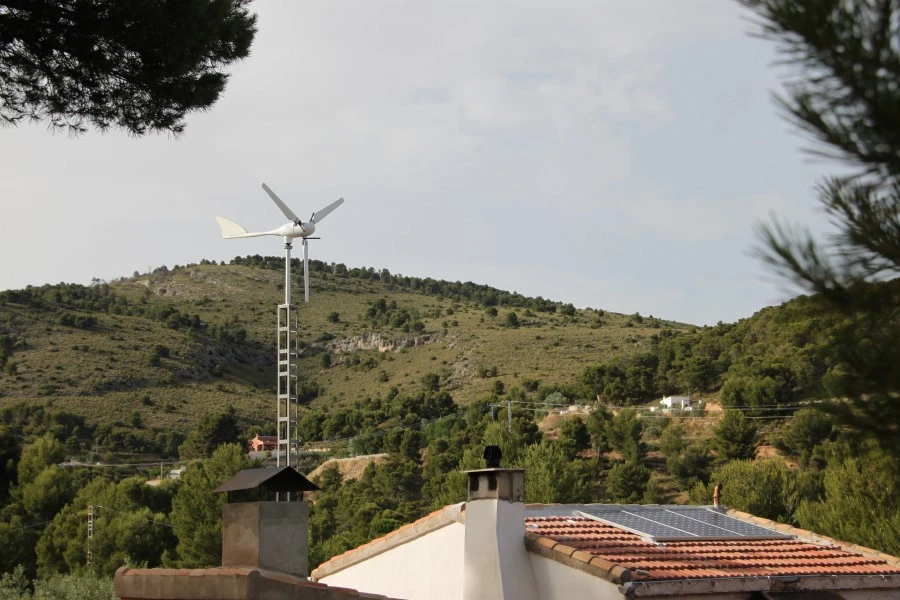

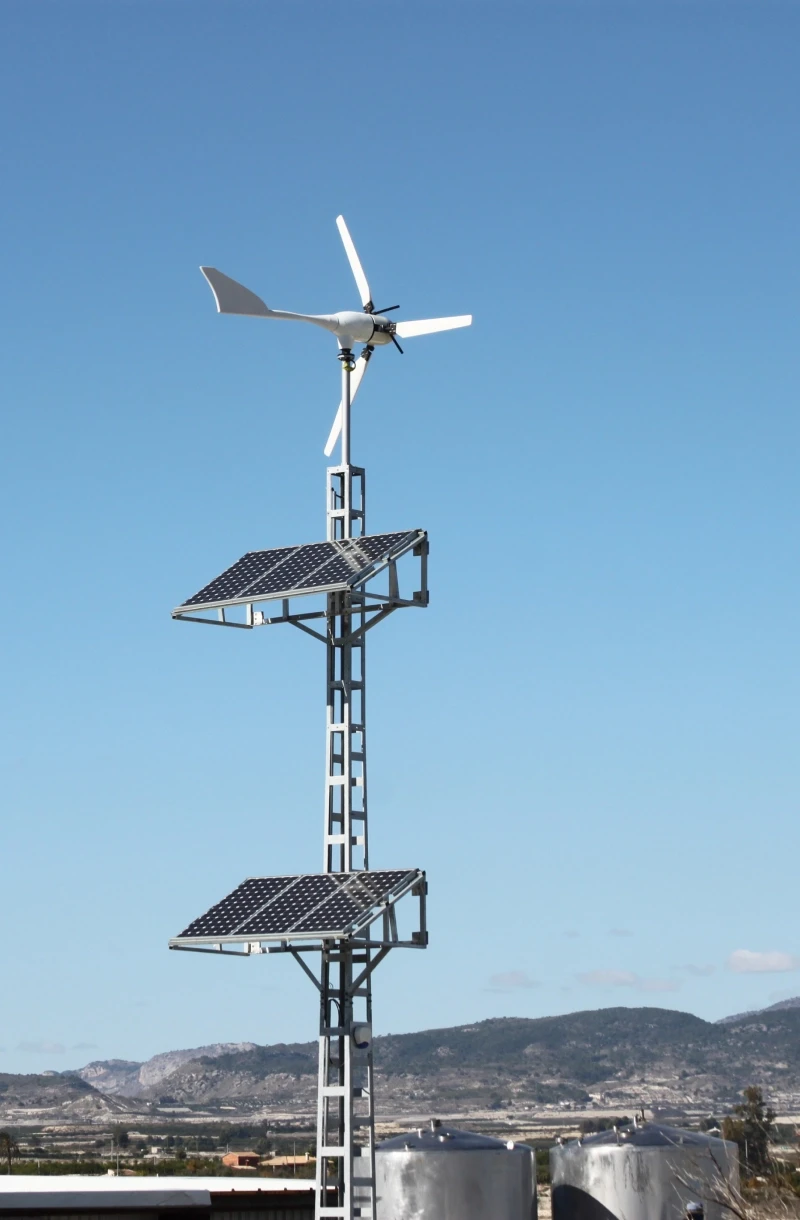

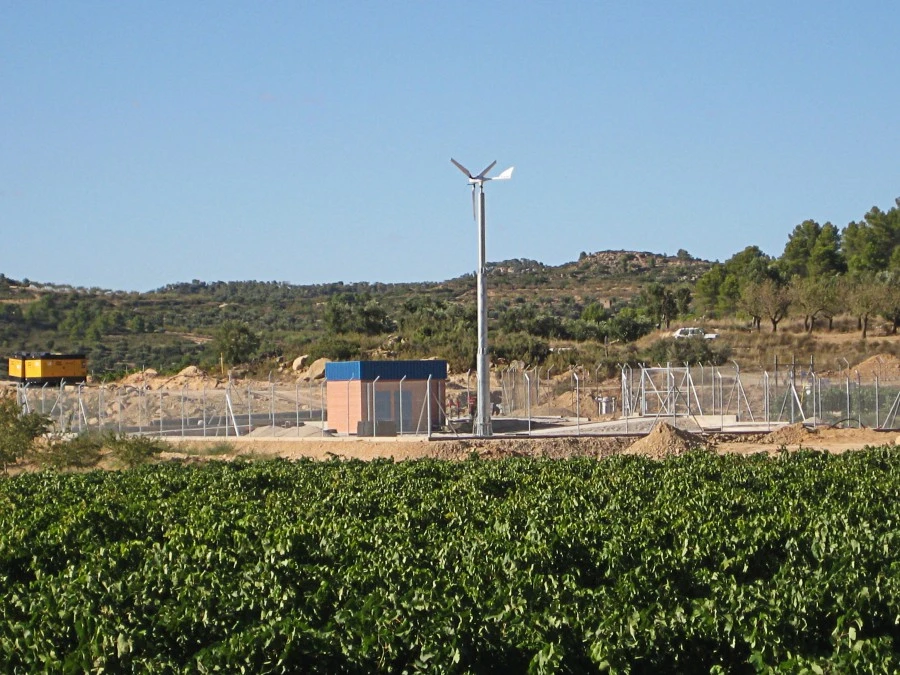

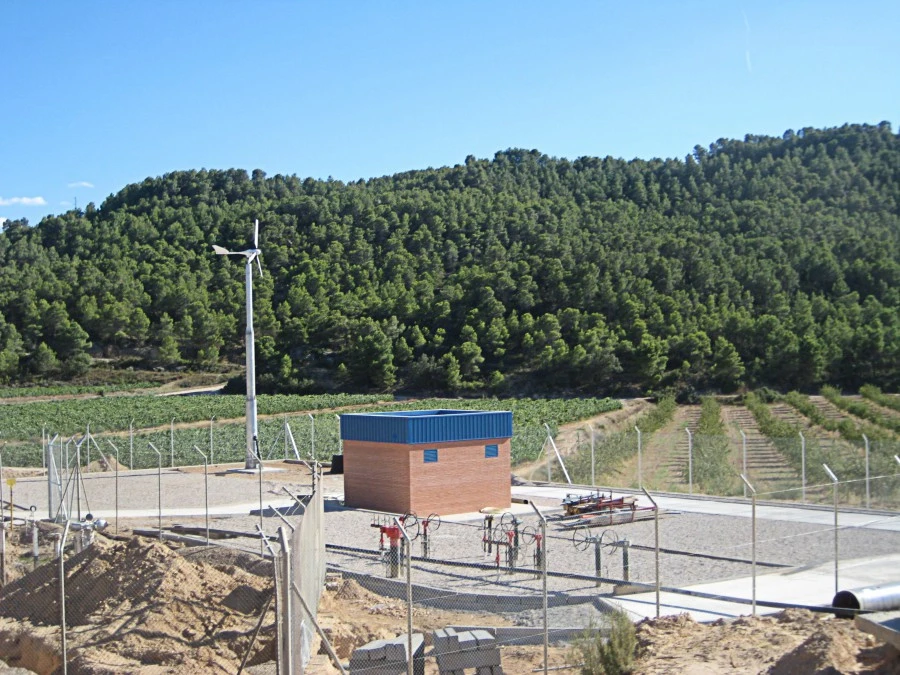

Gallery
See this turbine in action
Explore real-world installations and get a better sense of the scale, structure and design in the field
