Small wind turbines
G-11 HAWT
A robust 11 kW horizontal axis wind turbine built for hybrid systems, remote industrial applications, and off-grid energy independence in medium to high wind environments.
Download Spec SheetCore performance specs of the G-11 HAWT
With its 11 kW output, the G-11 HAWT delivers efficient, long-term energy generation for hybrid, commercial, and off-grid setups. Its low-maintenance design and advanced rotor control make it a versatile option for a wide range of environments.
Rotor dimensions
Swept area: 133 m²
Diameter: 13 m
Radius: 6.5 m
Rotor speed
56 RPM
Optimised for steady wind conditions
Weight
900 kg
Built for reliable, long-term performance
Regulation type
Class III Passive
Safely regulates output in strong wind conditions

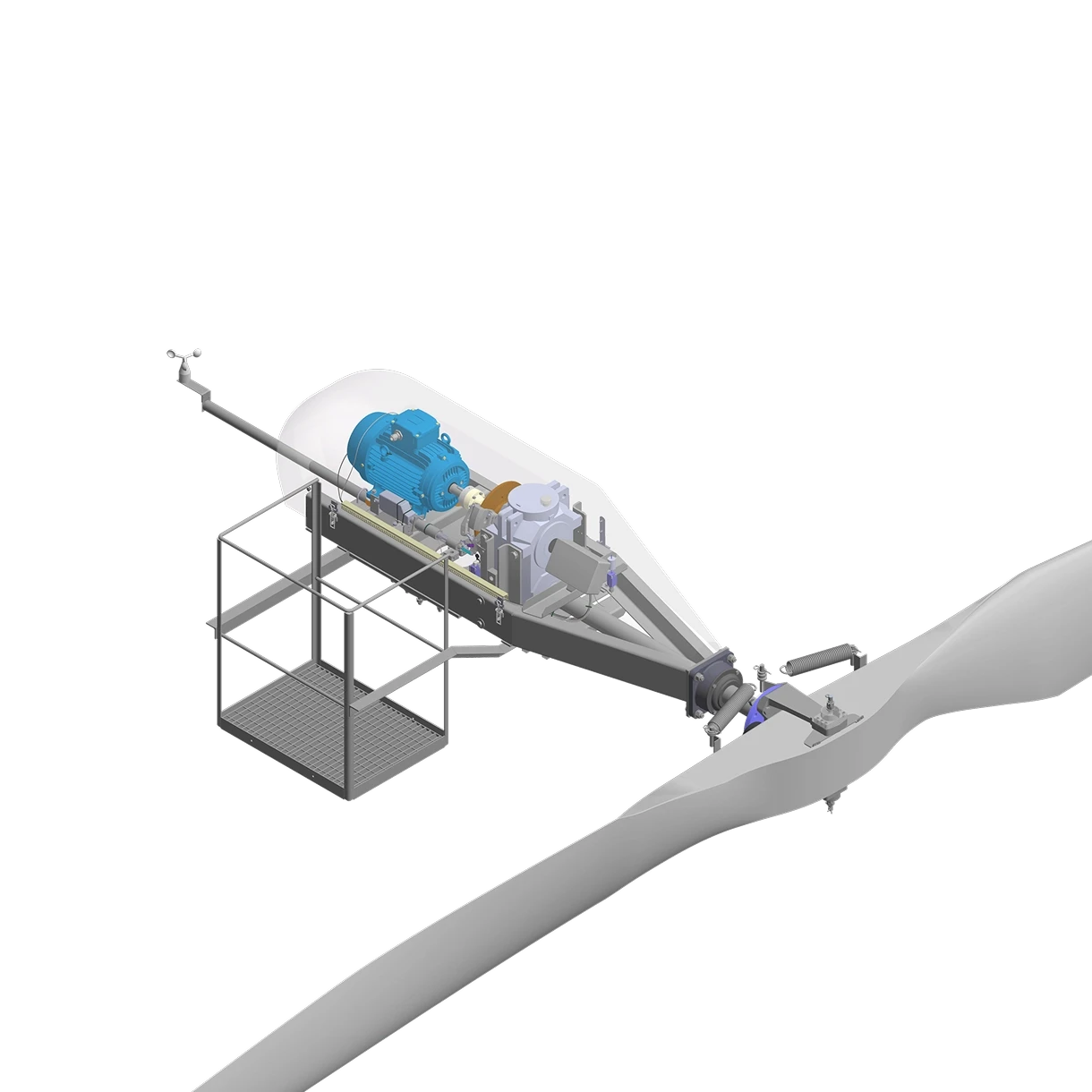

Mechanical characteristics of the G-11 HAWT
With its refined rotor and maintenance-friendly setup, the G-11 delivers smooth, reliable energy output for hybrid and distributed power systems.
Blades
Single piece glass fibre blade maximises strength and minimises connection interfaces, limiting points of potential failure.
Swept Area
Superior performance in moderate wind speeds due to the large swept area of 133 m² maximises power output.
Generator
Induction generator produces 3 phase, sinusoidal output without the need for power electronics, simplifying the control system and increasing the reliability of the system.
Anemometer
Wind speed sensor accurately tracks the behaviour of the wind in real time, in order to improve the turbine’s performance and safety.

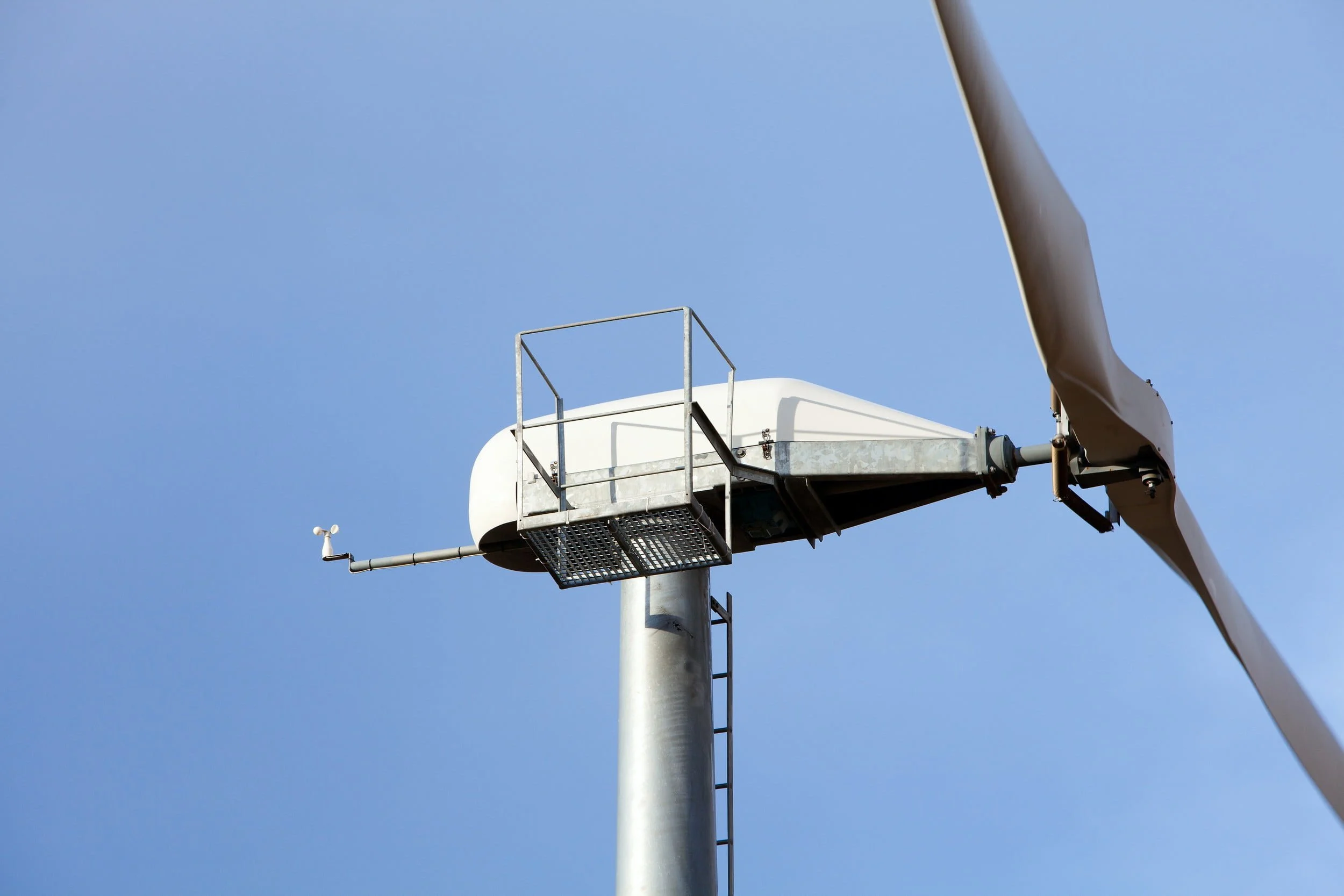

Work Basket
Built-in work basket and ladder allow servicing and maintenance to be performed easily and safely, at a reduced cost, without the need for specialist lifting equipment.
Gearbox
Fixed ratio gearbox with a constant rotor speed ensures a low-level noise profile is maintained even during high wind speeds.
Controller & Monitoring
Remote monitoring allows service engineers to assess the status and health of the wind turbine, ensuring the system is operating at peak performance at all times.
Data sheet
Everything you need to know about the performance and build of this model in one place
TECHNICAL DETAILS
Generator
Type
Induction
Maximum Power
11 kW
Rotor
Configuration
Horizontal Axis
No. of Blades
2
Blade Material
Glass fibre
Blade Length
6.5 m
Rotor Diameter
13 m
Swept Area
133 m²
Nominal Rotor Speed
56 rpm
Pitch/Yaw
Downwind active pitch with assisted yaw
Wind
Cut-In Speed
3 m/s
Rated Wind Speed
11 m/s
Cut-Out Speed
25 m/s
Survival Speed
52.5 m/s
Weights
Nacelle/Rotor
900 kg
Towers
Tilt-Up Monopole
18 – 27 m
Lattice
15 – 36 m
Design Parameters
Turbine Design Class
IEC 61400-2 Class III
Temperature Range
-20° to 50°C
Lifespan & Servicing
20 years, subject to regular maintenance
Real-world uses for this turbine
Built for locations that need reliable power without the grid
Commercial and industrial facilities
Delivers dependable power for small-scale manufacturing, processing plants, and distributed industrial operations.

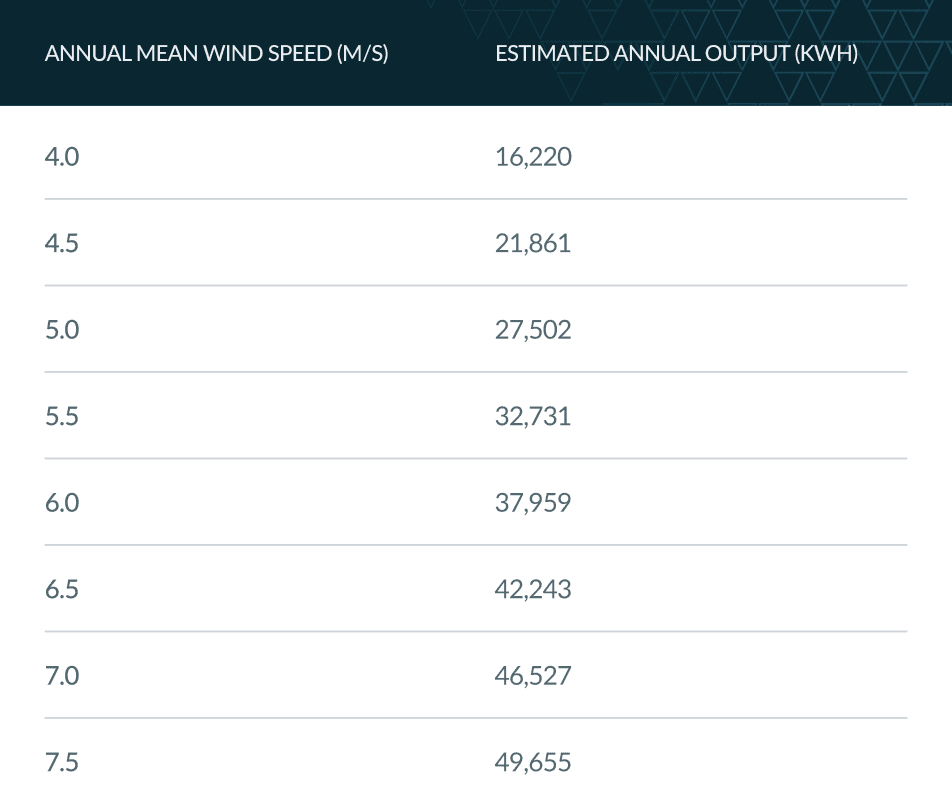

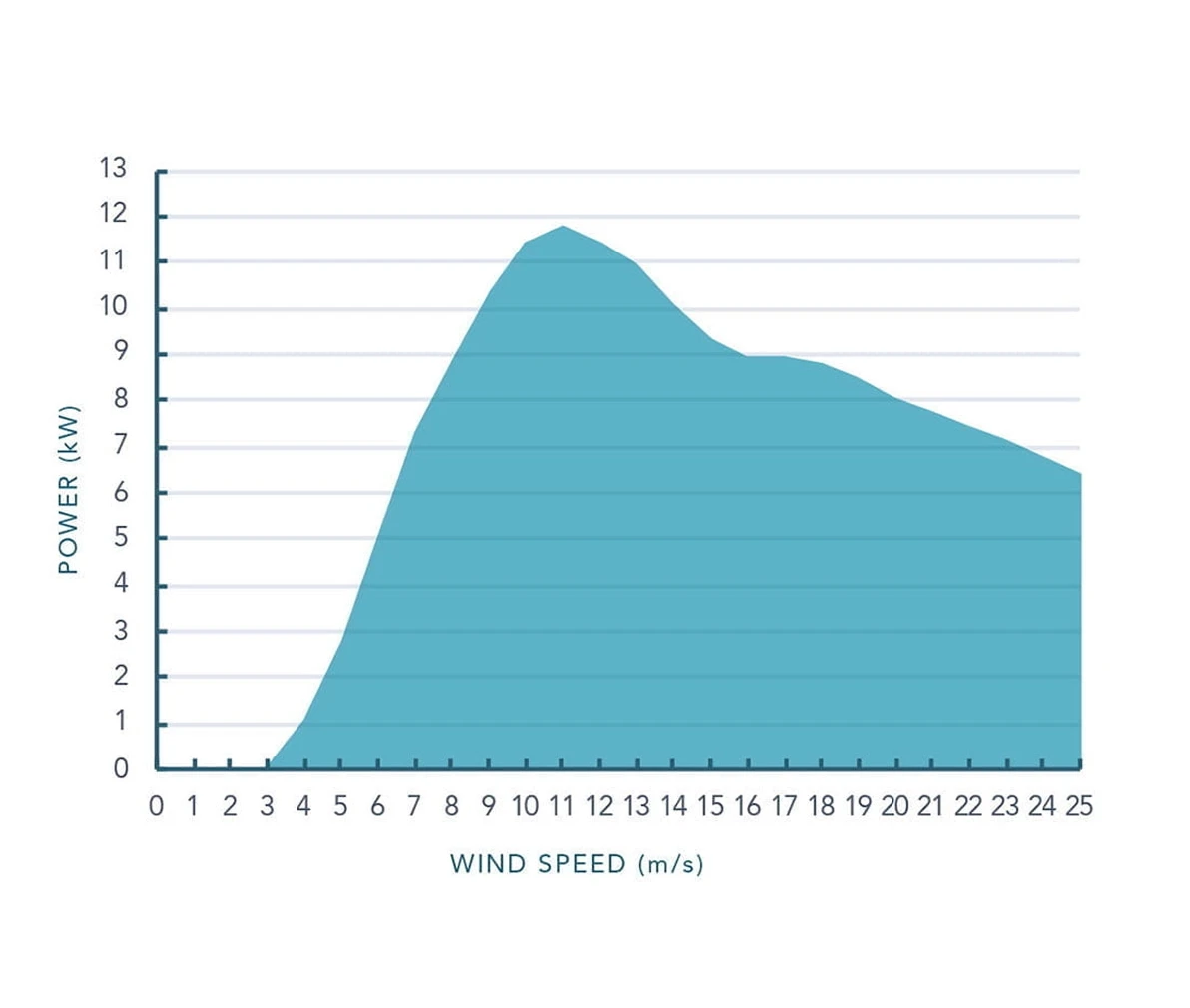

Performance
Understand your turbine’s output
See how this model performs and what kind of energy it can deliver in real conditions
Sound levels
How quiet is it?
With a fixed rotor and reliable pitch design, the G-11 maintains a minimal acoustic footprint ideal for semi-urban and agricultural environments.
45 dB (A)
As quiet as a typical living room
60 meters
40 dB (A)
Roughly equal to a quiet library at 80m
100 meters
35 dB (A)
Quiet room at night
180 meters
Real results
Wind projects we’ve delivered
Over 100 case studies and counting
Explore how Ryse Energy has delivered renewable solutions across 10+ industries worldwide, from telecom to agriculture.

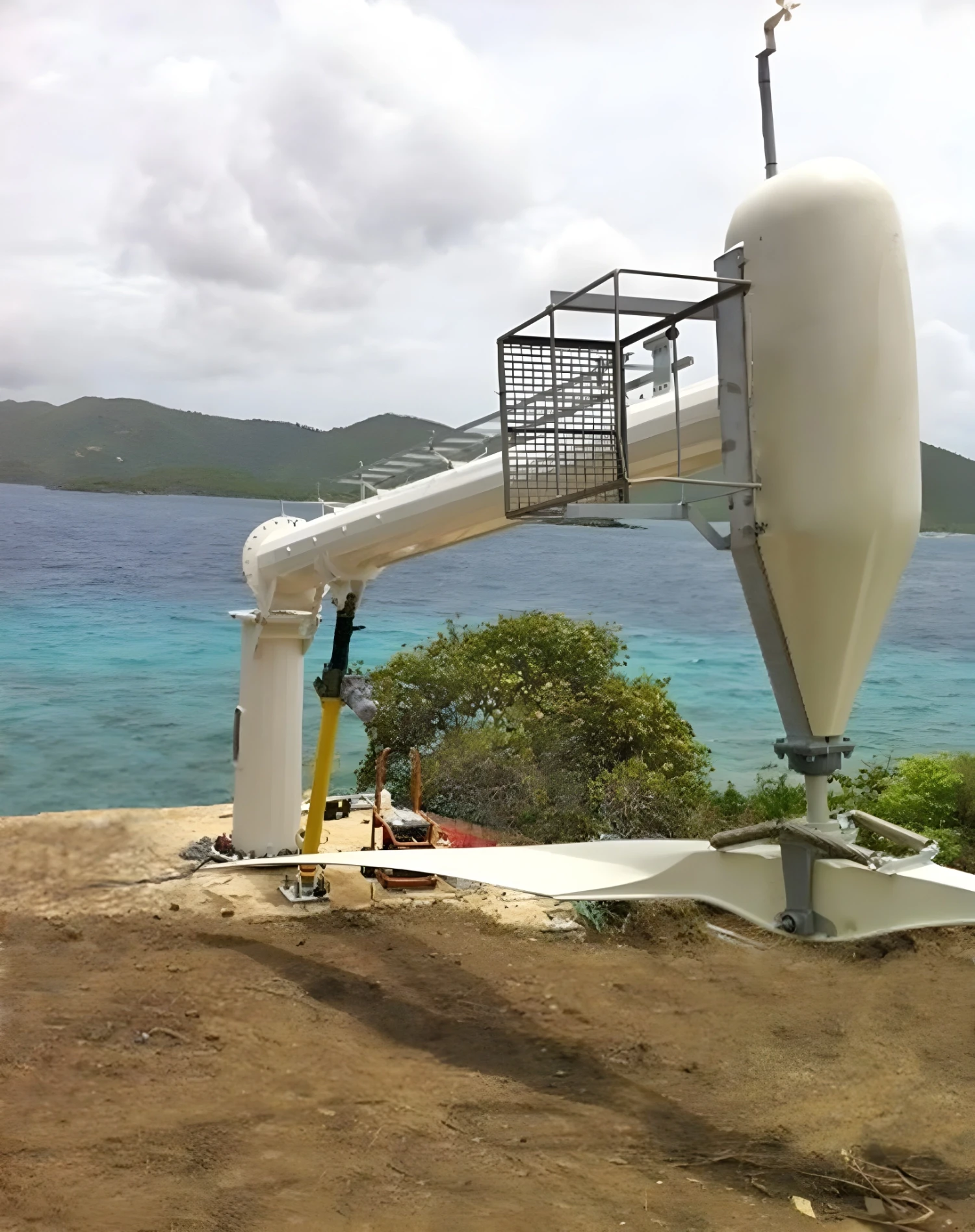

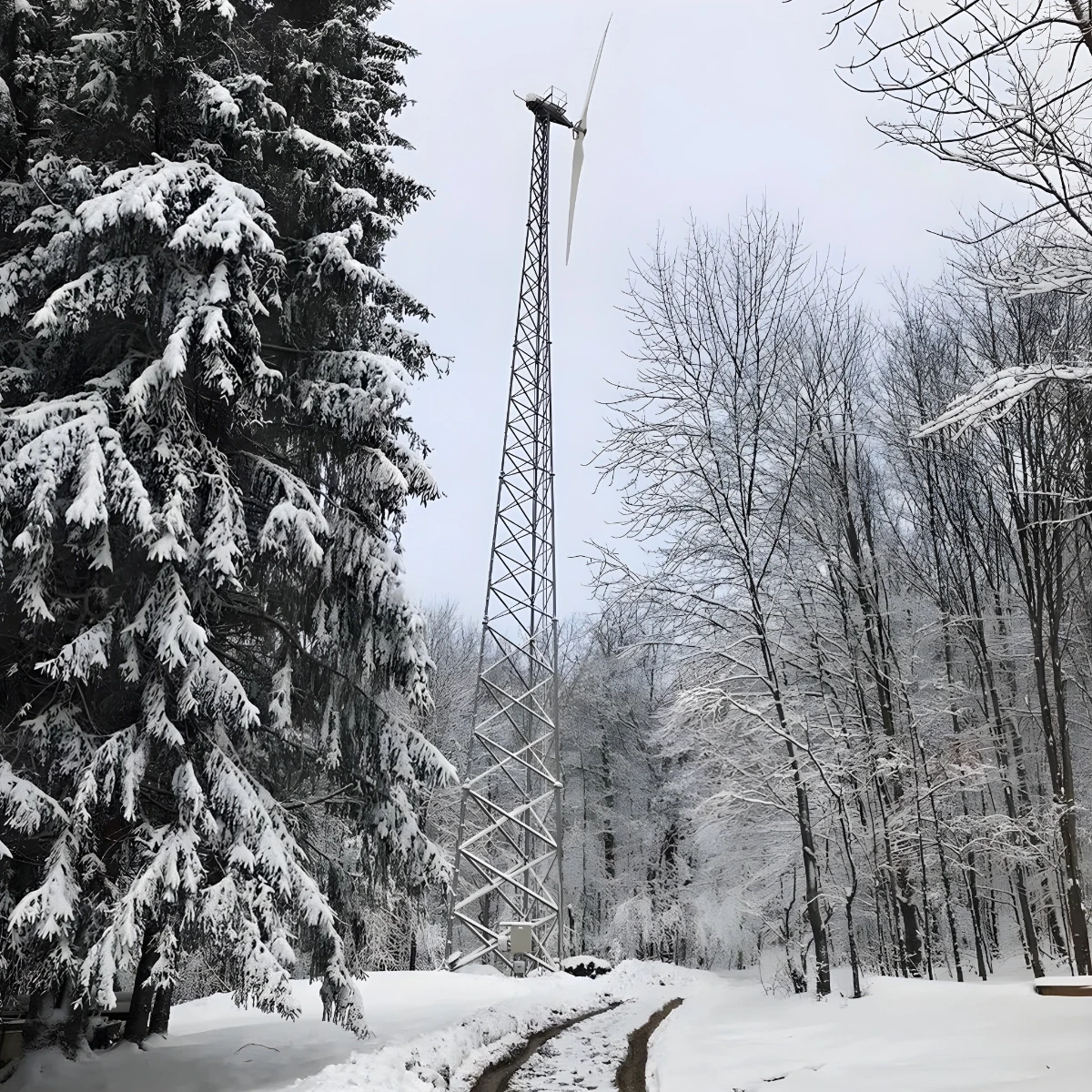

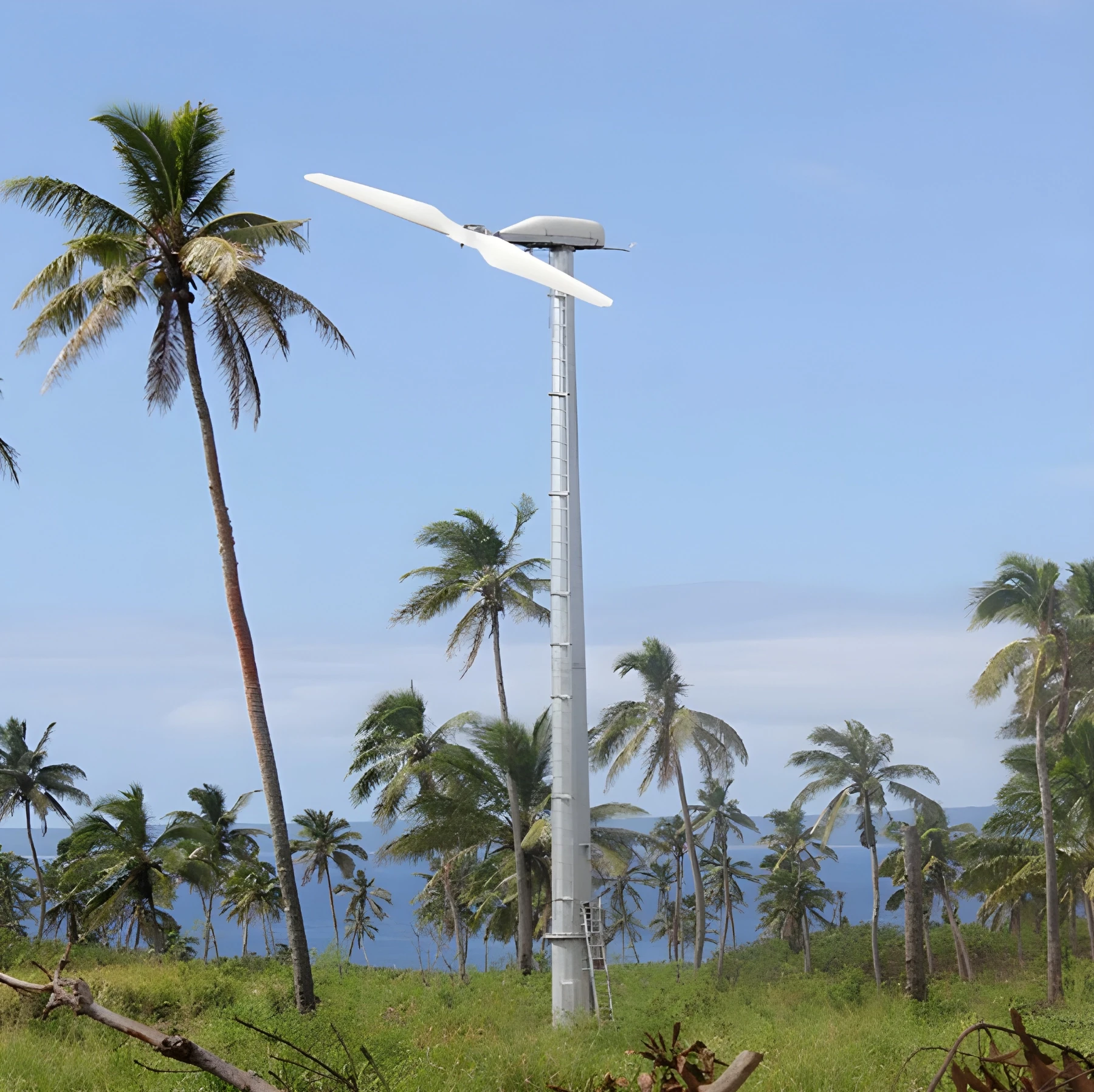

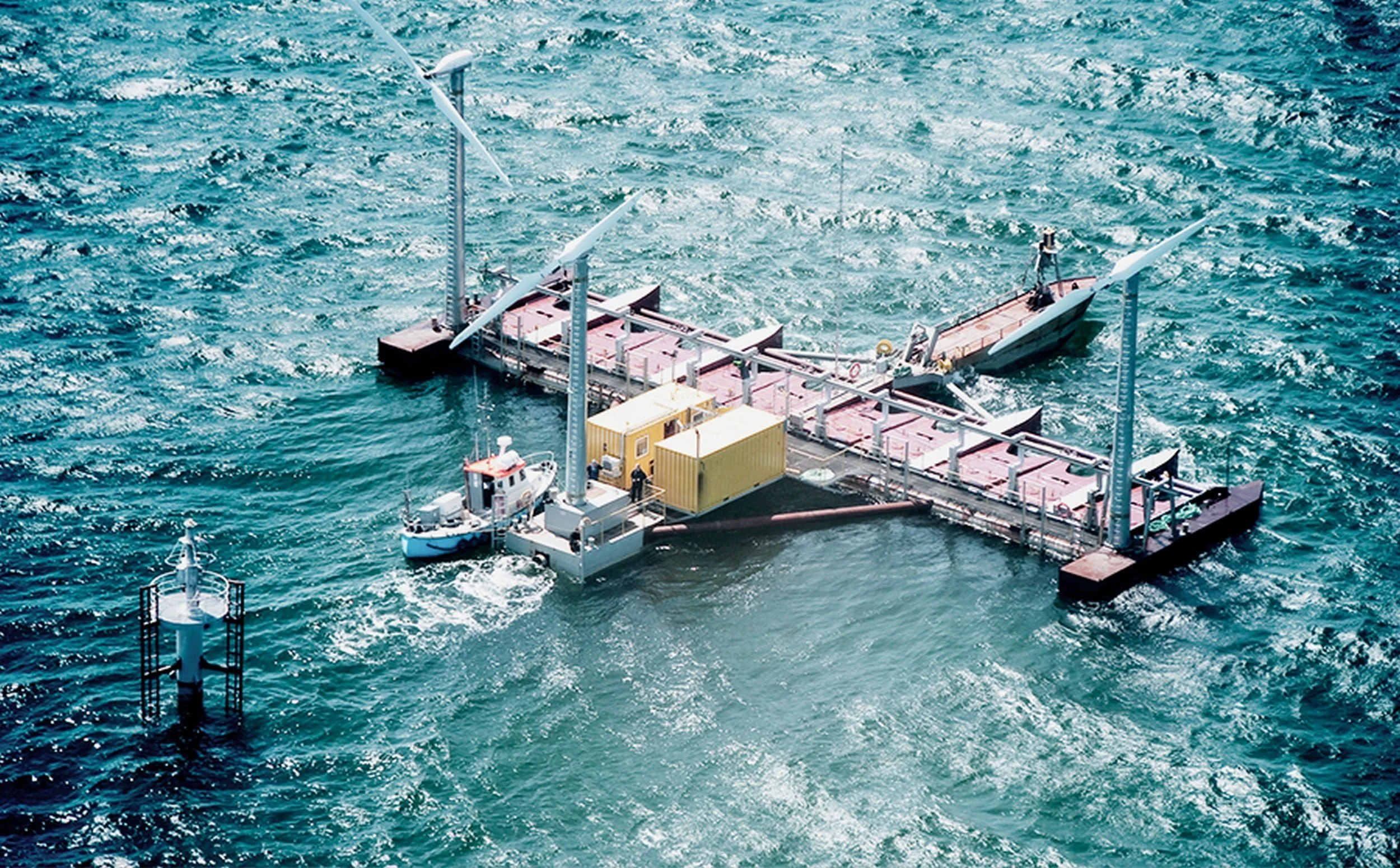

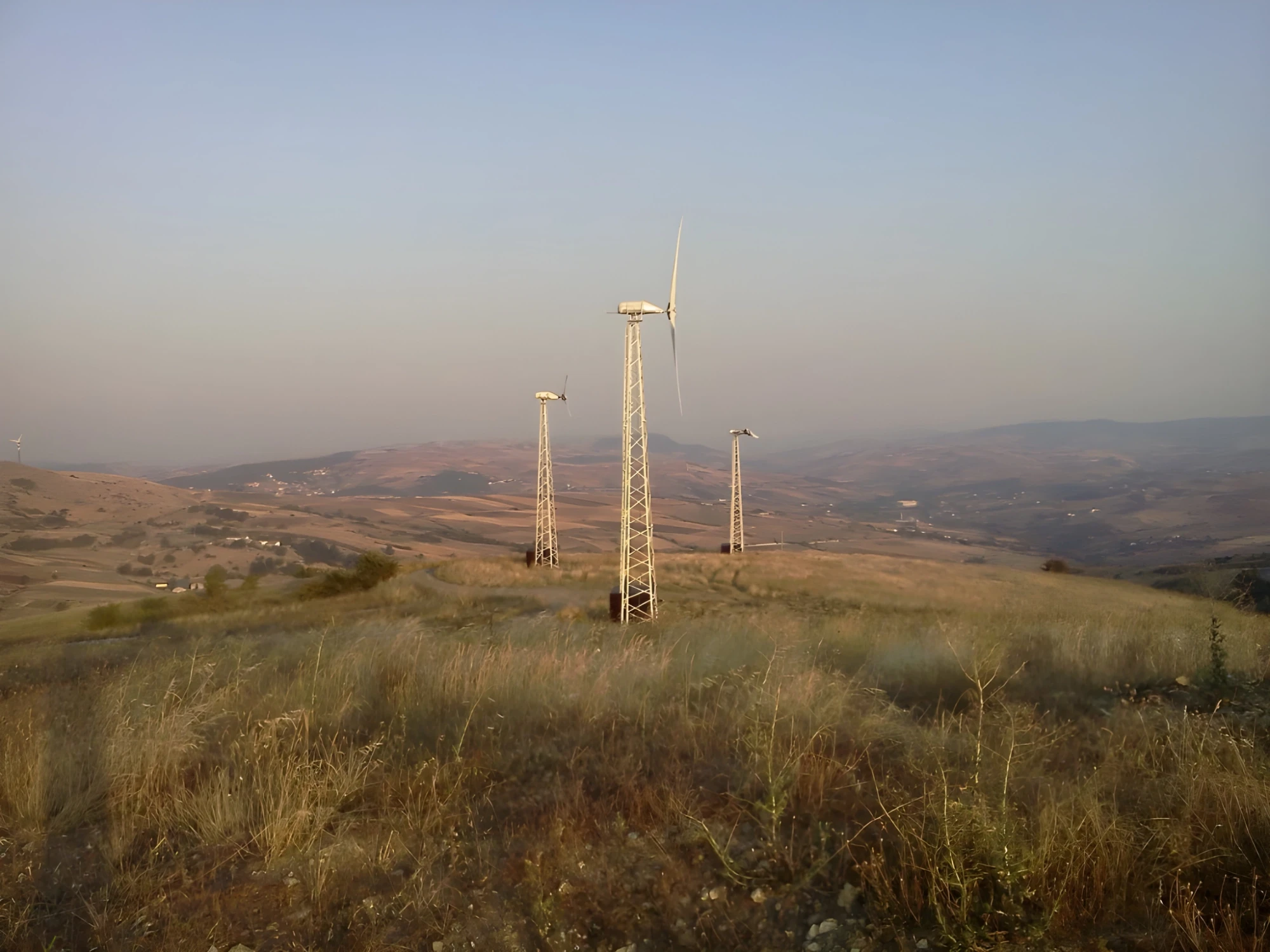

Gallery
See this turbine in action
Explore real-world installations and get a better sense of the scale, structure and design in the field
