E-10 HAWT
High-capacity 10 kW wind turbine built for commercial off-grid systems, hybrid installations, and remote industrial operations requiring reliable, year-round energy.
Download Spec SheetCore performance specs of the E-10 HAWT
Designed for high-demand environments, the E-10 delivers stable, high-output wind energy for commercial, off-grid, and hybrid systems. Below are the key specifications that define its performance in the field.
Rotor dimensions
Swept area: 75.4 m²
Diameter: 9.8 m
Radius: 4.5 m
Rotor speed
120 RPM
Optimised for steady wind conditions
Weight
1000 kg
Built for reliable, long-term performance
Regulation type
Class I Active
Safely regulates output in strong wind conditions
Performance characteristics of the E-10 HAWT
With its larger swept area and rugged construction, the E-10 is built to deliver consistent energy output and dependable operation in demanding, high-wind locations.
Wind Turbine Blades
Profiles optimized using CFD simulations and made with the latest resin compounds based on acrylic urethane and epoxy in compibantion with composite carbon and glass fibre.
Variable Pitch Blades
Patented, active variable pitch system with passive safety features offers accurate control of the position of the blades and protects automatically in case of system failure.
Generator
Permanent magnet generator of 40 poles, 20 kW maximum power at 120 rpm and 1,700 Nm provides a high level of energy performance.
Hydraulic Blade Control
Hydraulic system based on a highly precise position sensor determines the position of the blades according to the control algorithms.
Anemometer
Wind speed sensor accurately tracks the behaviour of the wind in real time, in order to improve the turbine’s performance and safety.
Controller & Monitoring
Configurable controller electronics allows the turbine to adapt to the type of grid or batteries connected, providing maximum energy generation. Remote Monitoring ensures the wind turbine is operating at its peak performance at all times.
Data sheet
Everything you need to know about the performance and build of this model in one place
TECHNICAL DETAILS
Generator
Type
Permanent Magnet
Maximum Power
20 kW
Rated Power
10 kW (Software Limited)
Rotor
Configuration
Horizontal Axis
No. of Blades
3
Blade Material
Glass fibre
Blade Length
4.5 m
Rotor Diameter
9.8 m
Swept Area
75.4 m²
Nominal Rotor Speed
120 rpm
Pitch/Yaw
Downwind active pitch with assisted yaw
Wind
Cut-In Speed
2 m/s
Rated Wind Speed
9 m/s
Cut-Out Speed
30 m/s
Survival Speed
70 m/s
Weights
Nacelle/Rotor
1,000 kg
Towers
Lattice
15 – 36 m
Monopole
18 – 27 m
Tilt-Up
18 – 27 m
Design Parameters
Turbine Design Class
IEC 61400-2 Class I
Temperature Range
-20° to 50°C
Lifespan & Servicing
20 years, subject to regular maintenance
Real-world uses for this turbine
Built for locations that need reliable power without the grid
Industrial and agricultural operations
Supports irrigation, processing, and energy-intensive machinery in remote or high-wind industrial zones.

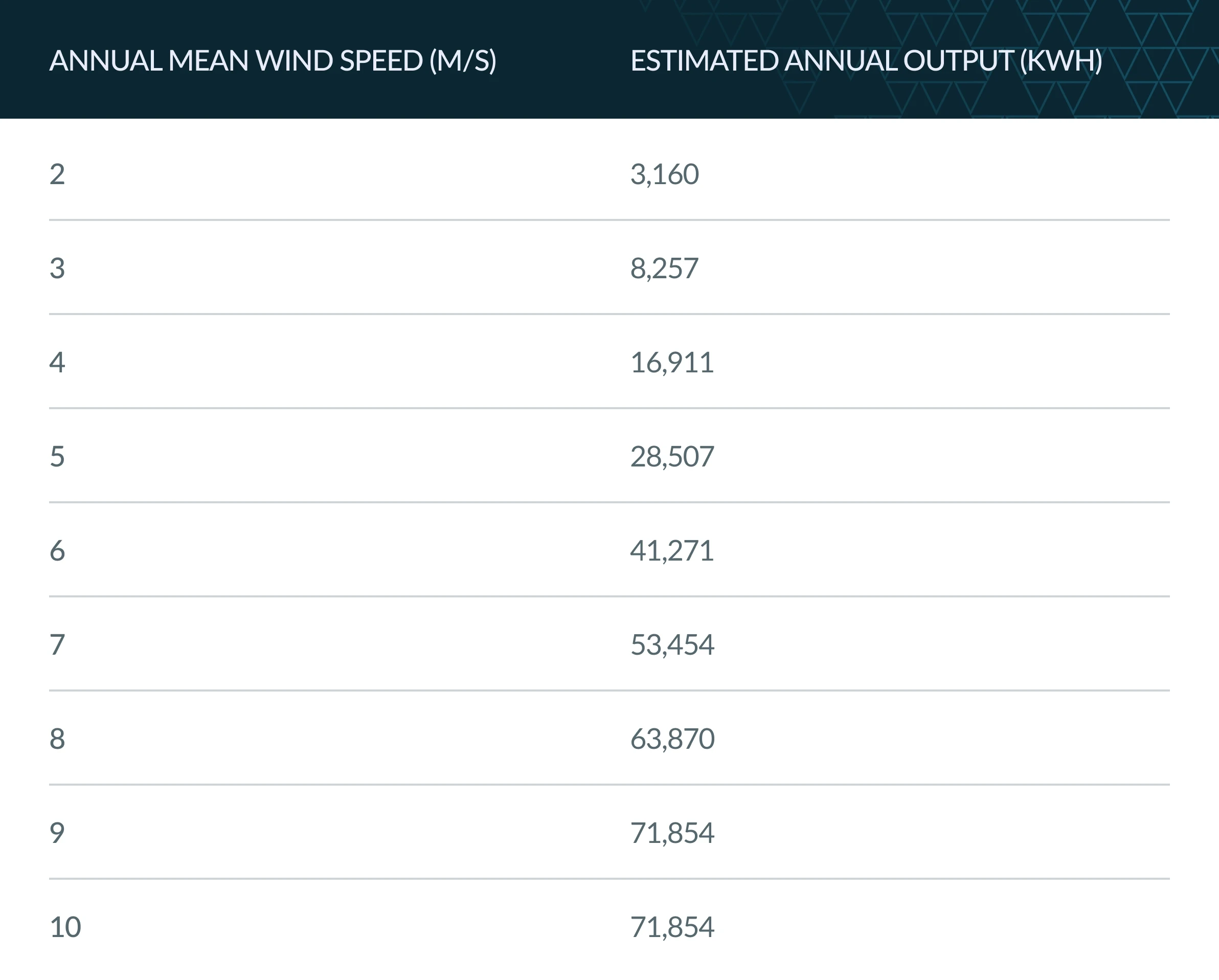

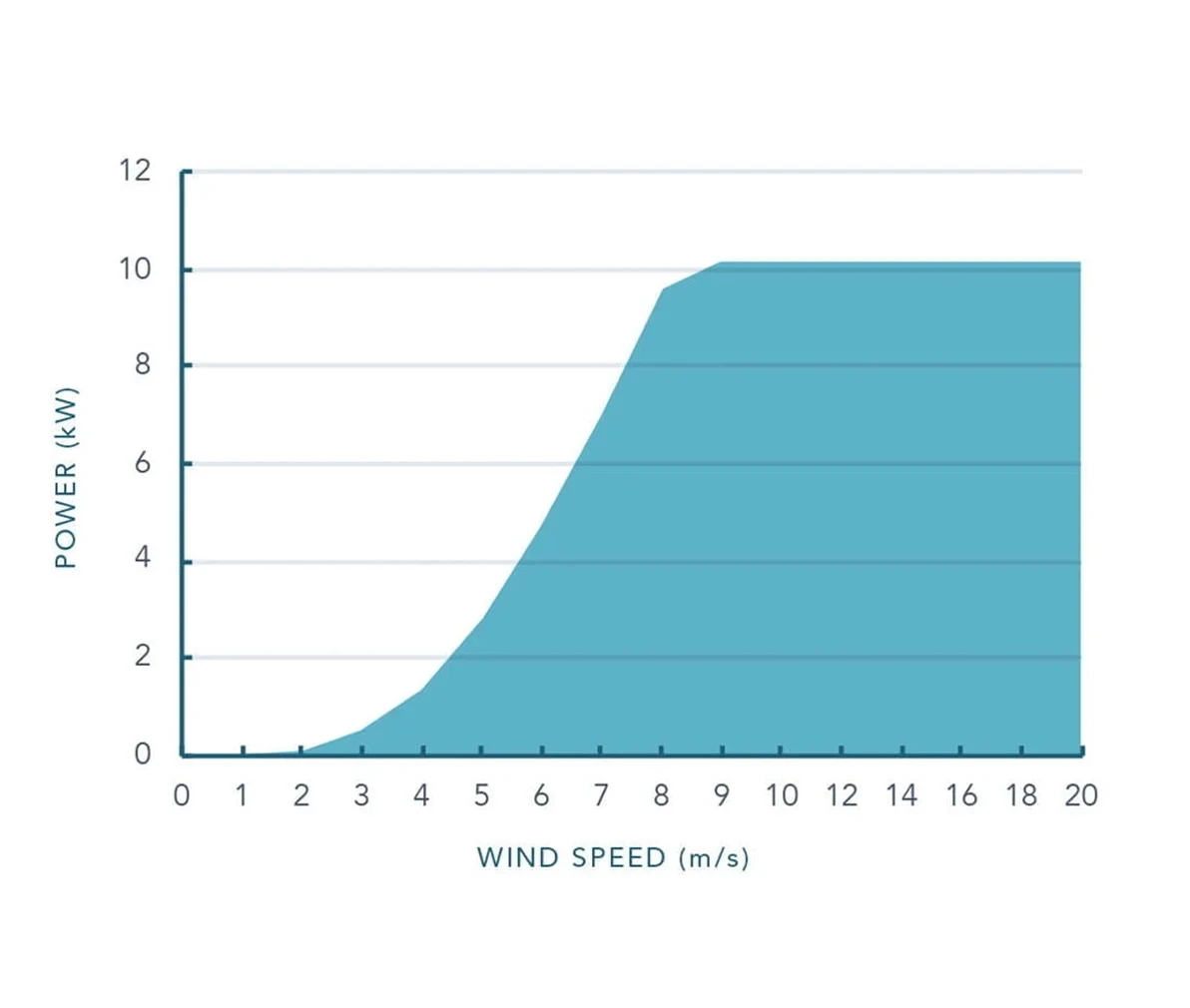

Performance
Understand your turbine’s output
See how this model performs and what kind of energy it can deliver in real conditions
Sound levels
How quiet is it?
The E-10 delivers consistent performance with a balanced noise profile, making it a solid fit for both remote communities and light commercial areas.
46 dB (A)
As quiet as a typical living room
60 meters
40 dB (A)
Roughly equal to a quiet library at 80m
100 meters
33 dB (A)
Quiet room at night
180 meters
