Why choose the GridHub 200Ah
A 10kWh wall-mounted battery with integrated protections, inverter compatibility and flexible expansion for growing power needs.
10kWh capacity (51.2V, 200Ah)
Up to 16 units in parallel
Integrated BMS with advanced protections
Compatible with leading inverter brands
IP65 rated with natural convection cooling
Real-world uses for this battery
Built for locations that need reliable power without the grid
Hybrid energy systems
Pairs seamlessly with wind, solar and grid sources

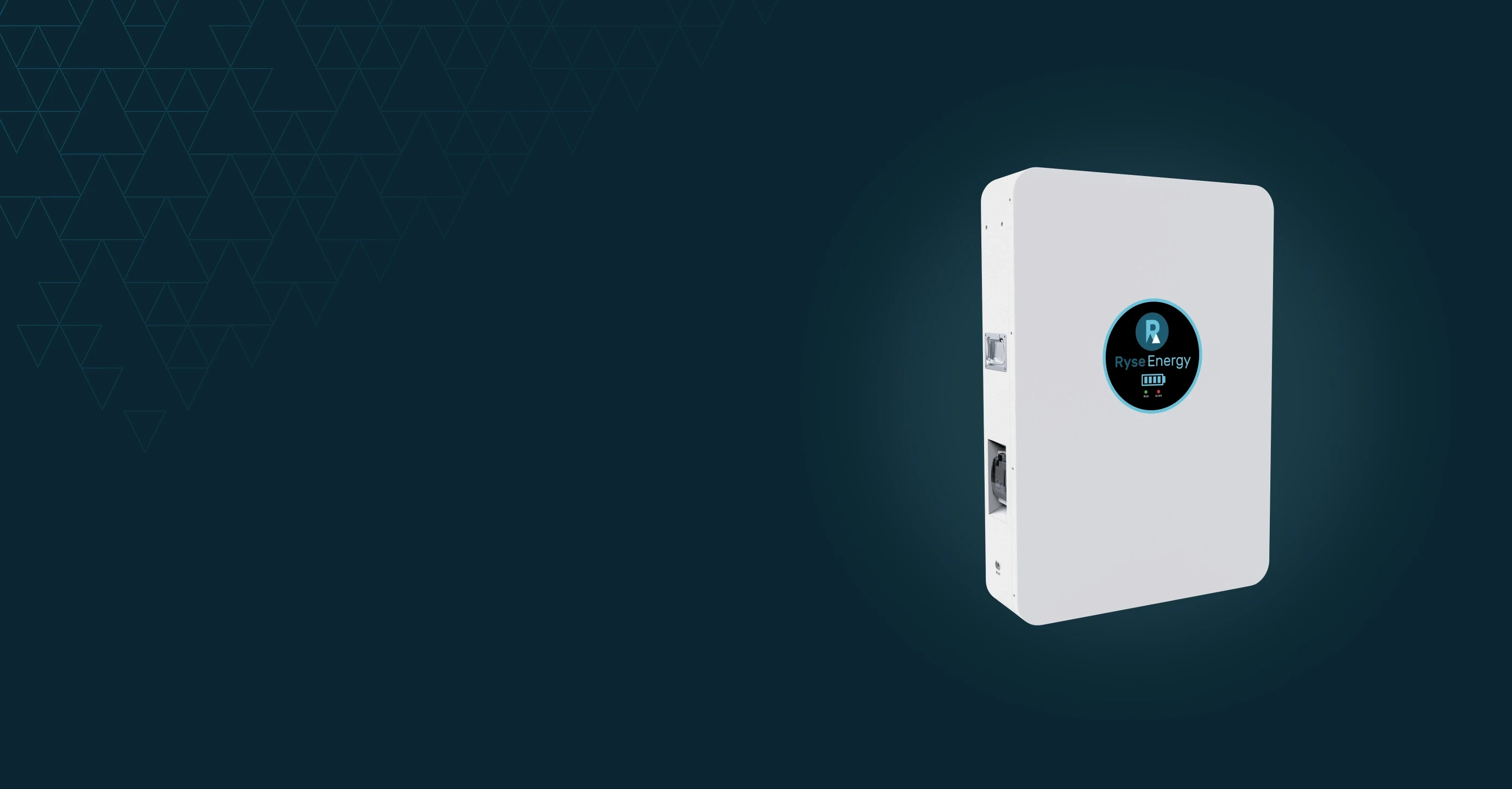

In detail
Everything you need to know about the GridHub 200Ah
The GridHub 200Ah is a high-capacity, wall-mounted LFP battery designed for hybrid and off grid systems. With 10kWh of storage and 51.2V nominal voltage, it supports demanding site requirements with low maintenance and long cycle life.
It features a smart BMS for protection against overcharging, overheating, and deep discharge. The unit supports up to 16 batteries in parallel, allowing for flexible system scaling based on energy needs.
With IP65 protection and natural cooling, the GridHub 200Ah is ideal for residential, telecom and small commercial use in both indoor and outdoor environments.
Data sheet
Everything you need to know about the performance and build of this model in one place
VALUE
SPECIFICATION
Model
RE-51200W-A1
Battery chemistry
LiFePO₄ (LFP)
Nominal capacity
200Ah
Nominal voltage
51.2V
Energy capacity
10kWh
Max charging current
100A
Max discharging current
100A
Charge voltage
54.6V (adjustable)
Discharge cut-off voltage
43V (adjustable)
Parallel support
Up to 16 units
Installation
Wall-mounted
Dimensions (L×W×H)
850 × 590 × 165 mm
Weight
Approx. 90 kg
Cooling
Natural convection
Download Spec Sheet
